Features
| - Available in size 9-way |
| - Has a conical strain relief |
| - Suitable for any common d-sub connector |
| - Easy to reopen |
| - Also available with a compression insert (MHDTSL-JSFR series) |
Specifications
| Housing Material: | Die Cast Zinc Alloy |
| Housing Plating: | Nickel Plated |
| Operating Temperature Range: | -40°C to +120°C |
| Cable Entry: | Top or 45° Side Entry |
| Thumbscrews: | UNC 4-40 (Standard), M2.5 or M3 (On Request) |
| Cable Outer Diameter: | Up to 11.5mm |

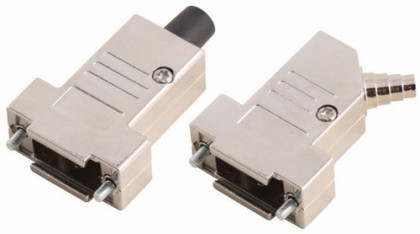

Standard D-Sub Hood | Jackscrews, Conical Strain Relief, Top or 45° Side Entry
Loading Parts
Part # |
housing material |
drawing |
|
|---|---|---|---|
|
MHDTSL09-JS-S-K | Zinc, Nickel Plated | |
|
MHDTSL09-JS-T-K | Zinc, Nickel Plated |
