MHCD Series

Features

- D-Sub mixed contact connectors allowing signal and power transfer within one connector
- Available in industry-standard contact configurations - 3W3 | 5W1 | 5W5 | 7W2
- All contacts are pre-loaded into the insulator
- Options include solder cup, vertical and right-angle solder pin terminations
- Power contacts rated for 20 or 40-amp depending on requirement, signal contacts rated for 5-amp



Specifications

Insulator material:Thermoplastic Polyester, UL 94V-0, Black
Contact material & plating:Copper Alloy, Gold Flash All Over
Shell material & plating:Steel, Nickel Plated
Current rating (power contacts):20A, 40A
Current rating (signal contacts):5A
Working voltage rating:240V
Contact resistance (power contacts):1 mΩ MAX.
Contact resistance (signal contacts):10 mΩ MAX.
Insulator resistance:5 GΩ MIN.
Dielectric withstand voltage:1000 VAC RMS at sea level
Operating temperature:-55°C to +125°C
Mating cycles:50



Combo D-Sub range; power and signal single connectors.


OR

Loading Parts


Part #

Configuration

Type

Power (Amps)

Termination

Drawing

3W3 vertical dip COMBO D-SUB plug
MHCDD3W3P4
MHCDD3W3P4 3W3 Plug 40 Vertical DIP pin
3W3 vertical dip COMBO D-SUB socket
MHCDD3W3S4
MHCDD3W3S4 3W3 Socket 40 Vertical DIP pin
5W1 vertical dip D-Sub combo
MHCDD5W1P4

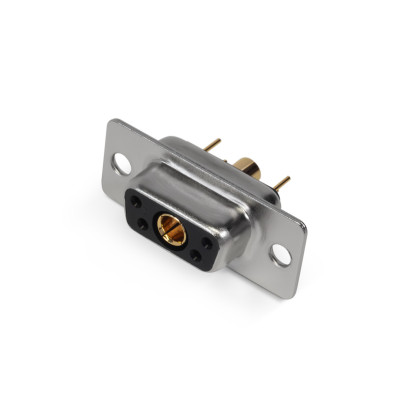

MHCDD5W1P4 5W1 Plug 40 Vertical DIP pin
5W1 vertical dip D-Sub combo
MHCDD5W1S4
MHCDD5W1S4 5W1 Socket 40 Vertical DIP pin
5W5 vertical dip d-sub combo
MHCDD5W5P4
MHCDD5W5P4 5W5 Plug 40 Vertical DIP pin
5W5 vertical dip d-sub combo
MHCDD5W5S4
MHCDD5W5S4 5W5 Socket 40 Vertical DIP pin
7W2 vertical dip d-sub combo
MHCDD7W2P4
MHCDD7W2P4 7W2 Plug 40 Vertical DIP pin
7W2 vertical dip d-sub combo
MHCDD7W2S4
MHCDD7W2S4 7W2 Socket 40 Vertical DIP pin
3W3 right-angled dip pin d-sub combo connector
MHCDR3W3P4
MHCDR3W3P4 3W3 Plug 40 Right-angled DIP pin
3W3 right-angled dip pin d-sub connector
MHCDR3W3S4
MHCDR3W3S4 3W3 Socket 40 Right-angled DIP pin
5W1 right-angled dip pin d-sub combo connector
MHCDR5W1P4
MHCDR5W1P4 5W1 Plug 40 Right-angled DIP pin
5W1 right-angle dip D-Sub combo
MHCDR5W1S4
MHCDR5W1S4 5W1 Socket 40 Right-angled DIP pin
5W5 right-angled dip d-sub combo connector
MHCDR5W5P4
MHCDR5W5P4 5W5 Plug 40 Right-angled DIP pin
5W5 right-angled dip d-sub combo connector
MHCDR5W5S4
MHCDR5W5S4 5W5 Socket 40 Right-angled DIP pin
7W2 right-angled dip d-sub combo connector
MHCDR7W2P4
MHCDR7W2P4 7W2 Plug 40 Right-angled DIP pin
7W2 right-angled dip d-sub combo connector
MHCDR7W2S4
MHCDR7W2S4 7W2 Socket 40 Right-angled DIP pin
3W3 vertical solder cup d-sub combo connector
MHCDS3W3P2
MHCDS3W3P2 3W3 Plug 20 Vertical solder cup
3W3 vertical solder cup d-sub combo connector
MHCDS3W3P4
MHCDS3W3P4 3W3 Plug 40 Vertical solder cup
3W3 vertical solder cup d-sub combo connector
MHCDS3W3S2
MHCDS3W3S2 3W3 Socket 20 Vertical solder cup
3W3 vertical solder cup d-sub combo connector
MHCDS3W3S4
MHCDS3W3S4 3W3 Socket 40 Vertical solder cup
5W1 vertical solder cup d-sub combo
MHCDS5W1P2
MHCDS5W1P2 5W1 Plug 20 Vertical solder cup
5W1 vertical solder cup d-sub combo
MHCDS5W1P4
MHCDS5W1P4 5W1 Plug 40 Vertical solder cup
5W1 vertical solder cup d-sub combo
MHCDS5W1S2
MHCDS5W1S2 5W1 Socket 20 Vertical solder cup
5W1 vertical solder cup d-sub combo
MHCDS5W1S4
MHCDS5W1S4 5W1 Socket 40 Vertical solder cup
5w5 vertical solder cup d-sub combo
MHCDS5W5P2
MHCDS5W5P2 5W5 Plug 20 Vertical solder cup
5W5 vertical solder cup d-sub combo
MHCDS5W5P4
MHCDS5W5P4 5W5 Plug 40 Vertical solder cup
5W5 vertical solder cup d-sub combo
MHCDS5W5S2
MHCDS5W5S2 5W5 Socket 20 Vertical solder cup
5W5 vertical solder cup d-sub combo
MHCDS5W5S4
MHCDS5W5S4 5W5 Socket 40 Vertical solder cup
7W2 vertical solder cup d-sub combo connector
MHCDS7W2P2
MHCDS7W2P2 7W2 Plug 20 Vertical solder cup
7W2 vertical solder cup d-sub combo connector
MHCDS7W2P4
MHCDS7W2P4 7W2 Plug 40 Vertical solder cup
7W2 vertical solder cup d-sub combo connector
MHCDS7W2S2
MHCDS7W2S2 7W2 Socket 20 Vertical solder cup
7W2 vertical solder cup d-sub combo connector
MHCDS7W2S4
MHCDS7W2S4 7W2 Socket 40 Vertical solder cup
