Features
| - Available in sizes 9, 15, 25, 37 or 50-way |
| - Contacts are stamped and formed |
| - Contacts have solder cup termination |
| - Suitable for most MH d-sub hoods |
Specifications
| Insulator Material: | Glass-filled Polyester, Black, UL94 V-0 |
| Shell Material: | Stamped Steel |
| Shell Plating: | Nickel Plated |
| Contact Material: | Copper Alloy |
| Contact Plating: | Selective Gold over Nickel Plated |
| Contact Rating: | 100 inserts min. (Stamped Contacts) |
Standard Density Straight Solder Cup D-Sub | Stamped Contacts
Loading Parts
Part # |
Position |
material |
drawing |
Order Samples |
|
|---|---|---|---|---|---|
|
MHDB09-SP | 9 | Tin, Gold plated | ||
|
MHDB09-SS | 9 | Tin, Gold plated | ||
|
MHDB15-SP | 15 | Tin, Gold plated | ||
|
MHDB15-SS | 15 | Tin, Gold plated | ||
|
MHDB25-SP | 25 | Tin, Gold plated | ||
|
MHDB25-SS | 25 | Tin, Gold plated | ||
|

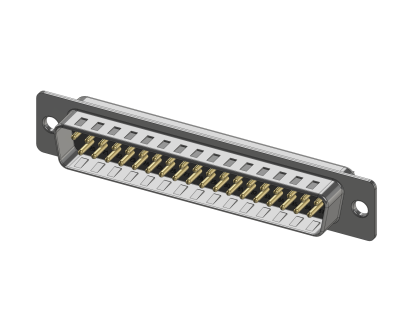

MHDB37-SP | 37 | Tin, Gold plated | ||
|
MHDB37-SS | 37 | Tin, Gold plated | ||
|
MHDB50-SP | 50 | Tin, Gold plated | ||
|
MHDB50-SS | 50 | Tin, Gold plated |
