Features
| - Available in sizes 9 and 25-way |
| - Sizes 15 and 37-way available on request |
| - Has a two-piece rapid-assembly ('RA') compression insert |
| - Suitable for any common d-sub connector |
| - Easy to reopen |
Specifications
| Housing Material: | Die Cast Zinc Alloy |
| Housing Plating: | Nickel Plated |
| Operating Temperature Range: | -20°C to +90°C |
| Cable Entry: | Side Entry |
| Thumbscrews: | UNC 4-40 |
| Cable Outer Diameter: | Up to 13mm |

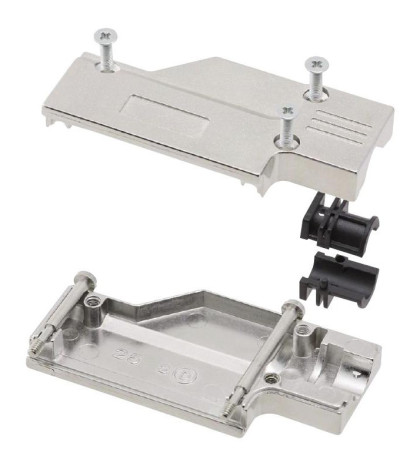

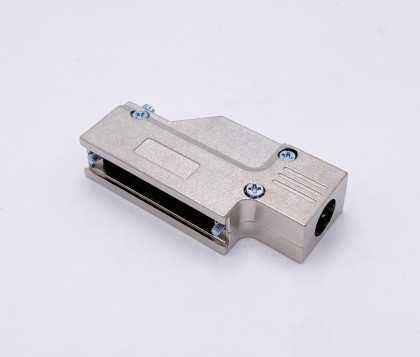

Rapid-Assembly Low Profile D-Sub Hood | Side Entry
Loading Parts
Part # |
Position |
housing material |
drawing |
Order Samples |
|
|---|---|---|---|---|---|
|
MHDCMR-09-RA-K | 9 | Zinc Alloy | ||
|
MHDCMR-25-RA-K | 25 | Zinc Alloy | ||
|
MHDCMR9-DB9P-K | 9 | N/A | ||
|
MHDCMR9-DB9S-K | 9 | N/A | ||
|
MHDCMR9-DM9P-K | 9 | N/A | ||
|
MHDCMR9-DM9S-K | 9 | N/A |
