Features
| - Available in standard density D-Sub sizes 9, 15, 25, 37, and 50-way |
| - PCB mount in vertical orientation with stamped contacts |
Specifications
| Insulator Material: | Glass-filled PBT, Black |
| Shell Material: | Steel |
| Contact Material | Brass |
| Contact Plating: | Gold Flash |
| Current Rating: | 5A |
| Withstanding Voltage: | 500 V AC for 1 Minute |
| Insulation Resistance: | 1000 MΩ Minimum |
| Contact Resistance: | 30 mΩ Maximum |
| Temperature Range: | -55°C TO 105°C |
Vertical Standard Density PCB Mount D-Sub | Stamped Contacts
Loading Parts
Part # |
Position |
Gender |
Hardware |
Contact Plating |
Drawing |
3D Model |
Order Samples |
|
|---|---|---|---|---|---|---|---|---|
|

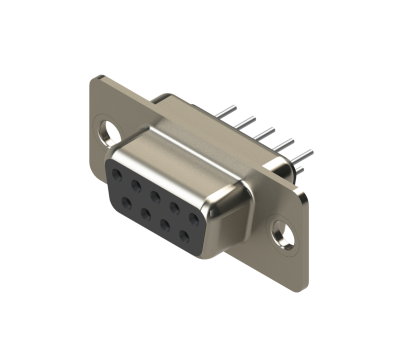

MHDD-09FNS-A1 | 9 | Female | Through Hole | Gold Flash | |||
|

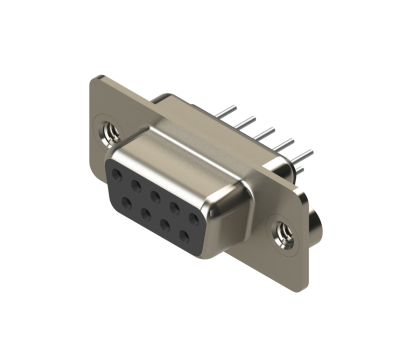

MHDD-09FNS-C1 | 9 | Female | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

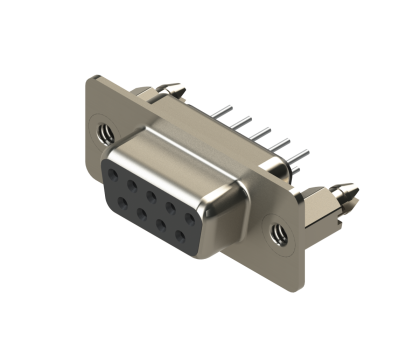

MHDD-09FNS-E1 | 9 | Female | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|
MHDD-09FNS-H1 | 9 | Female | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|

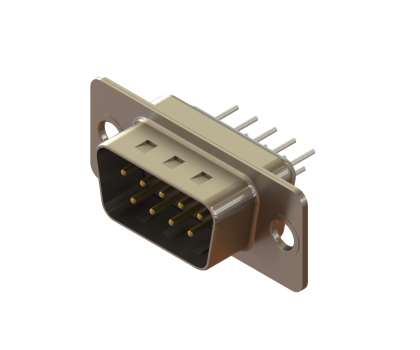

MHDD-09MNS-A1 | 9 | Male | Through Hole | Gold Flash | |||
|

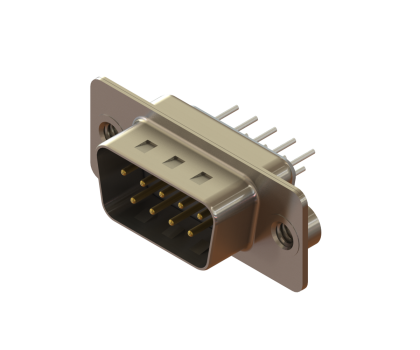

MHDD-09MNS-C1 | 9 | Male | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

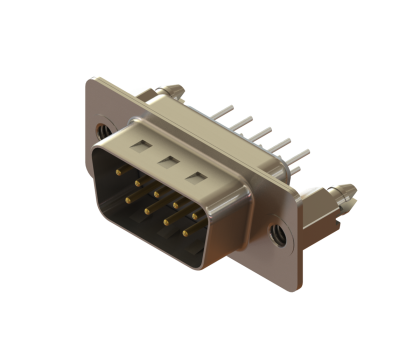

MHDD-09MNS-E1 | 9 | Male | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

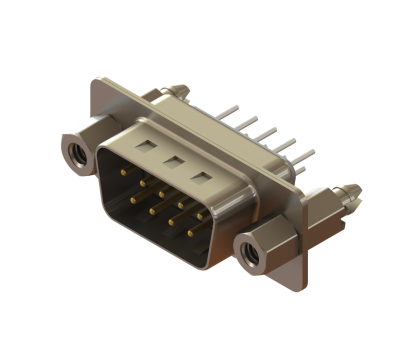

MHDD-09MNS-H1 | 9 | Male | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|

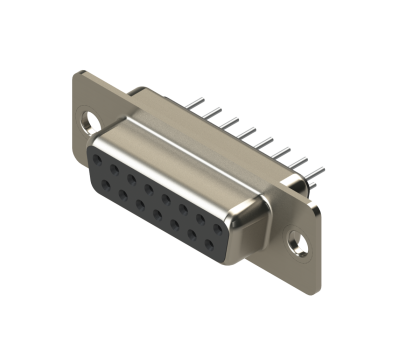

MHDD-15FNS-A1 | 15 | Female | Through Hole | Gold Flash | |||
|
MHDD-15FNS-C1 | 15 | Female | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

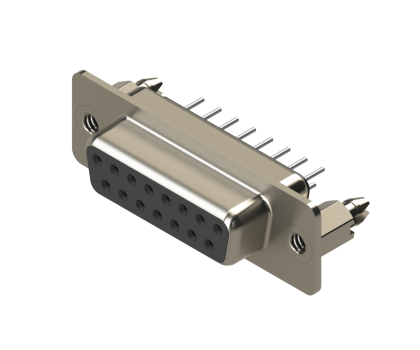

MHDD-15FNS-E1 | 15 | Female | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

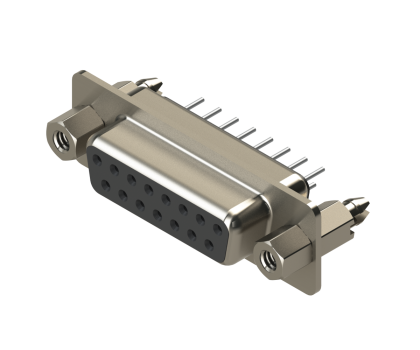

MHDD-15FNS-H1 | 15 | Female | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|
MHDD-15MNS-A1 | 15 | Male | Through Hole | Gold Flash | |||
|

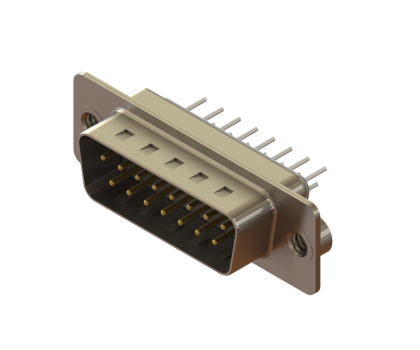

MHDD-15MNS-C1 | 15 | Male | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

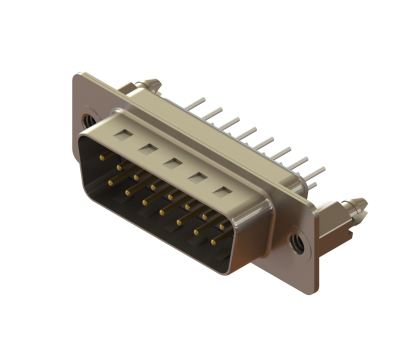

MHDD-15MNS-E1 | 15 | Male | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

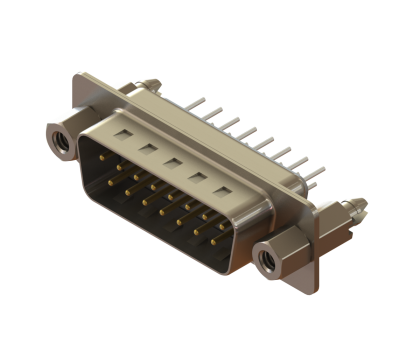

MHDD-15MNS-H1 | 15 | Male | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|

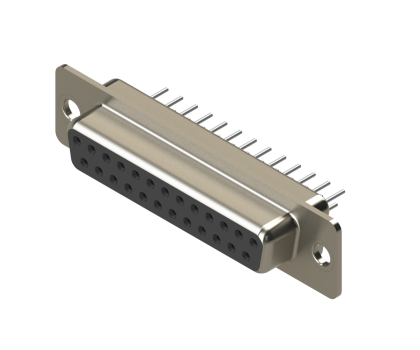

MHDD-25FNS-A1 | 25 | Female | Through Hole | Gold Flash | |||
|

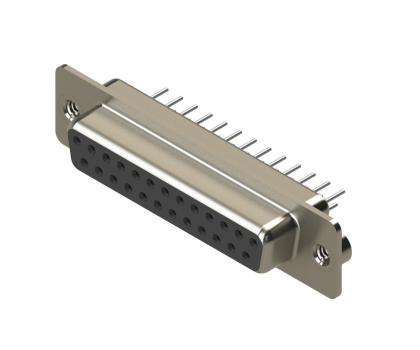

MHDD-25FNS-C1 | 25 | Female | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

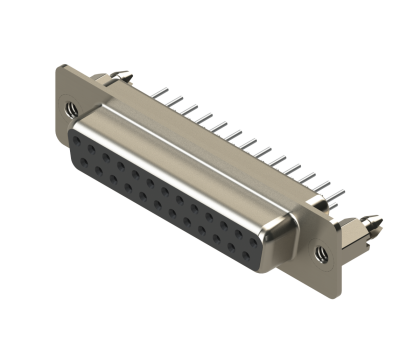

MHDD-25FNS-E1 | 25 | Female | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

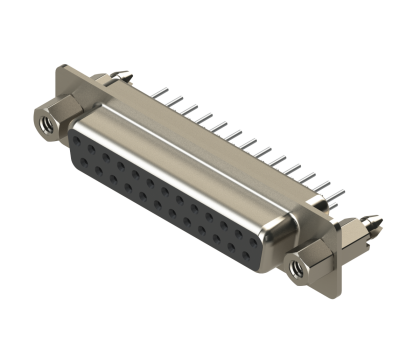

MHDD-25FNS-H1 | 25 | Female | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|
MHDD-25MNS-A1 | 25 | Male | Through Hole | Gold Flash | |||
|

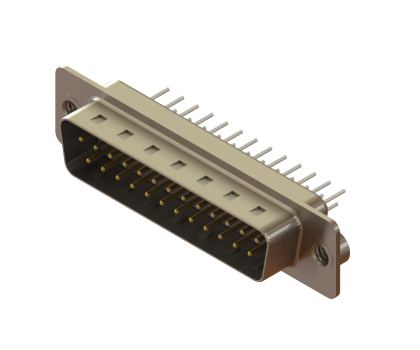

MHDD-25MNS-C1 | 25 | Male | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

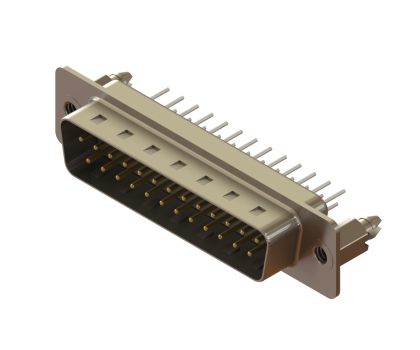

MHDD-25MNS-E1 | 25 | Male | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|
MHDD-25MNS-H1 | 25 | Male | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|

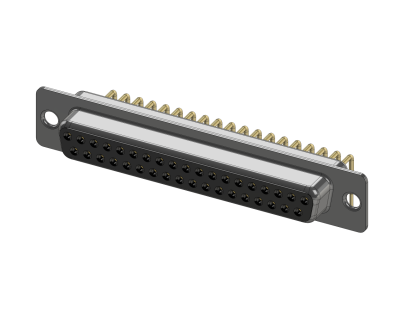

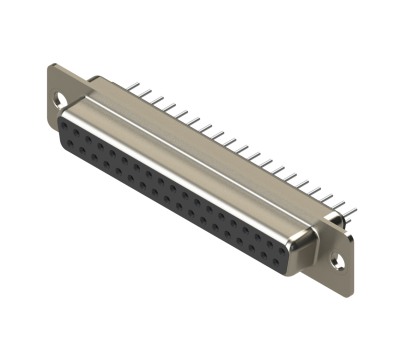

MHDD-37FNS-A1 | 37 | Female | Through Hole | Gold Flash | |||
|

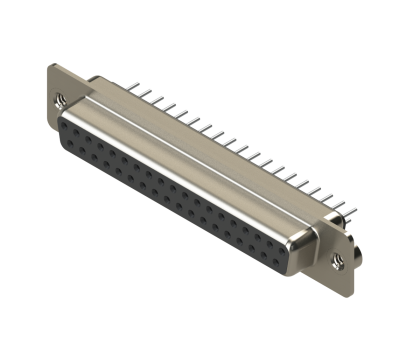

MHDD-37FNS-C1 | 37 | Female | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

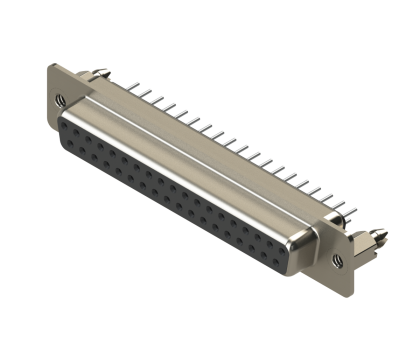

MHDD-37FNS-E1 | 37 | Female | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

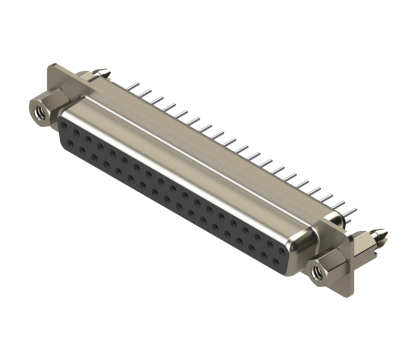

MHDD-37FNS-H1 | 37 | Female | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|
MHDD-37MNS-A1 | 37 | Male | Through Hole | Gold Flash | |||
|

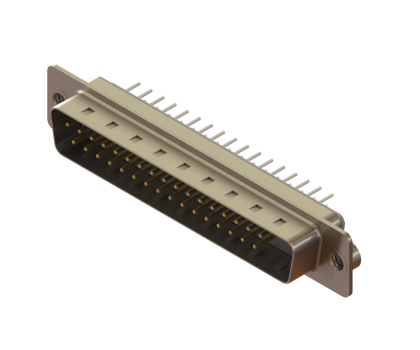

MHDD-37MNS-C1 | 37 | Male | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|
MHDD-37MNS-E1 | 37 | Male | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|
MHDD-37MNS-H1 | 37 | Male | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|

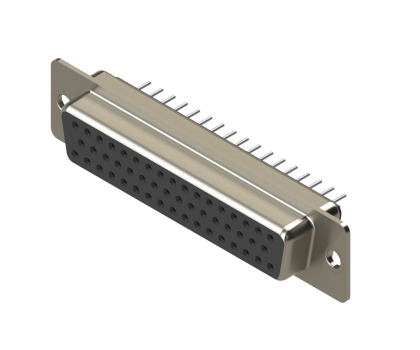

MHDD-50FNS-A1 | 50 | Female | Through Hole | Gold Flash | |||
|

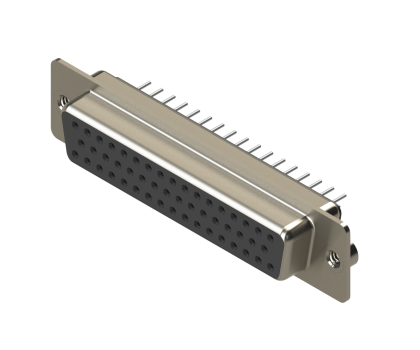

MHDD-50FNS-C1 | 50 | Female | N/A | Gold Flash | |||
|

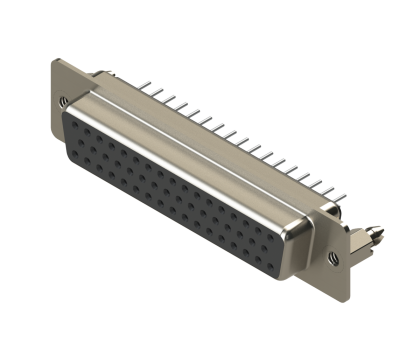

MHDD-50FNS-E1 | 50 | Female | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|
MHDD-50FNS-H1 | 50 | Female | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|

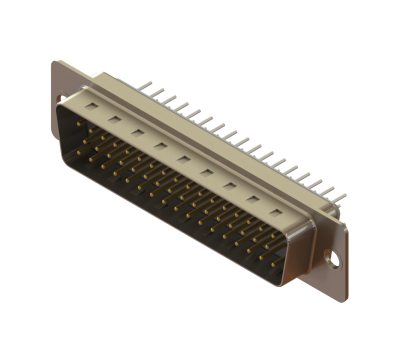

MHDD-50MNS-A1 | 50 | Male | Through Hole | Gold Flash | |||
|

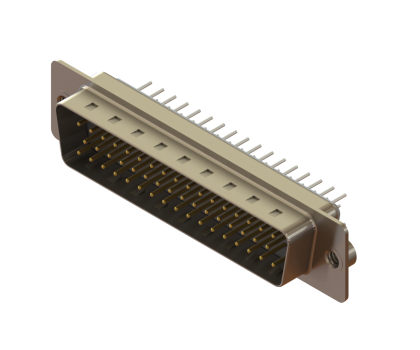

MHDD-50MNS-C1 | 50 | Male | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

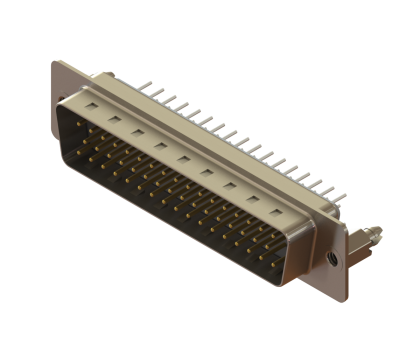

MHDD-50MNS-E1 | 50 | Male | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

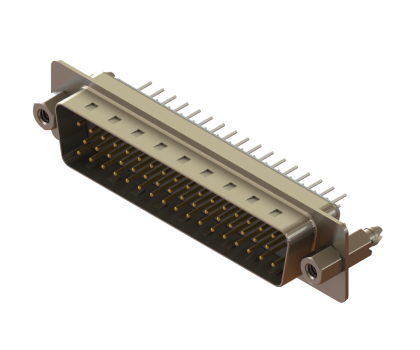

MHDD-50MNS-H1 | 50 | Male | #4-40 Threaded Standoff with Boardlock | Gold Flash |
