Features
| - Available in sizes 9, 15, 25, 37 or 50-way |
| - Contacts are machined |
| - Contacts have solder cup termination |
| - Suitable for most MH d-sub hoods |
Specifications
| Insulator Material: | Glass-filled Polyester, Black, UL94 V-0 |
| Shell Material: | Stamped Steel |
| Shell Plating: | Nickel Plated |
| Contact Material: | Copper Alloy |
| Contact Plating: | Selective Gold over Nickel Plated |
| Contact Rating: | 500 inserts min. (Machined Contacts) |
Standard Density Solder Cup D-Sub | Machined Contacts
Loading Parts
Part # |
Position |
material |
Type |
Pin |
Drawing |
|
|---|---|---|---|---|---|---|
|
MHDM-CTF | - | Brass, Gold Flash over Nickel | Socket | Machined | |
|
MHDM-CTM | - | Brass, Gold Flash over Nickel | Plug | Machined | |
|

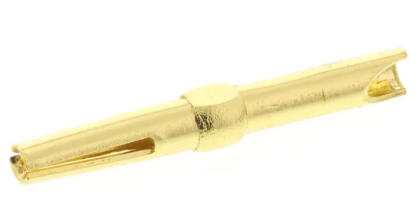

MHDM-STF | - | Brass, Gold Flash over Nickel | Socket | Machined | |
|
MHDM-STM | - | Brass, Gold Flash over Nickel | Plug | Machined | |
|
MHDM09-SP | 9 | Glass filled Polyester | Plug | Machined | |
|
MHDM09-SS | 9 | Glass filled Polyester | Socket | Machined | |
|
MHDM15-SP | 15 | Glass filled Polyester | Plug | Machined | |
|
MHDM15-SS | 15 | Glass filled Polyester | Socket | Machined | |
|
MHDM25-SP | 25 | Glass filled Polyester | Plug | Machined | |
|
MHDM25-SS | 25 | Glass filled Polyester | Socket | Machined | |
|
MHDM37-SP | 37 | Glass filled Polyester | Plug | Machined | |
|
MHDM37-SS | 37 | Glass filled Polyester | Socket | Machined | |
|
|
MHDM50-SP | 50 | Glass filled Polyester | Plug | Machined | |
|
|
MHDM50-SS | 50 | Glass filled Polyester | Socket | Machined |
