MHED-D Series

Features

  • Suitable for sizes 9-15-25-37-50 way
  • Easy to re-open
  • Slide-Lock system integrated inside hood with special spring and slide lever
  • Hoods are supplied complete with Slide-Lock system
  • Slide-Lock and Spring Lever also avaialble as accessories
  • Hood without Slide-Lock available on request
  • Metalised version available on request


    Specifications

    • Material: UL-recognised Plastic Material
    • Operating Temperature: -55 to +110
    • Cable Entry: Top + Side Entry
    • Cable O.D.: Up to 9mm
    • Colour: Black

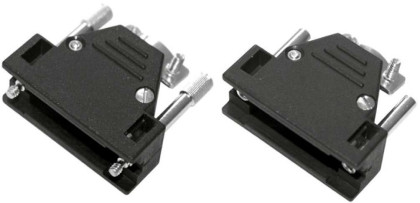

    Plastic D-Sub Hood | Slide Lock


    OR

    Loading Parts


    Part #

    Position

    material

    drawing

    MHED-D09T-K
    MHED-D09T-K 9 UL-recognised Plastic Material
    MHED-D09TF-K
    MHED-D09TF-K 9 UL-recognised Plastic Material
    MHED-D15T-K
    MHED-D15T-K 15 UL-recognised Plastic Material
    MHED-D15TF-K
    MHED-D15TF-K 15 UL-recognised Plastic Material
    MHED-D25T-K
    MHED-D25T-K 25 UL-recognised Plastic Material
    MHED-D25TF-K
    MHED-D25TF-K 25 UL-recognised Plastic Material
    MHED-D37T-K
    MHED-D37T-K 37 UL-recognised Plastic Material
    MHED-D37TF-K
    MHED-D37TF-K 37 UL-recognised Plastic Material
