Features
| - Available in standard high density D-Sub sizes 15, 26, 44, 62, and 78-way |
| - PCB mount in vertical orientation with stamped contacts |
Specifications
| Insulator Material: | Glass-filled PBT, Black |
| Shell Material: | Steel |
| Contact Material | Brass |
| Contact Plating: | Gold Flash |
| Current Rating: | 3A |
| Withstanding Voltage: | 500 V AC for 1 Minute |
| Insulation Resistance: | 1000 MΩ Minimum |
| Contact Resistance: | 30 mΩ Maximum |
| Temperature Range: | -55°C TO 105°C |

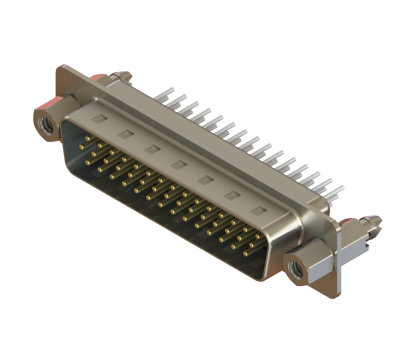

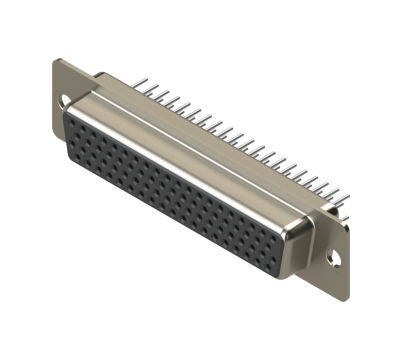

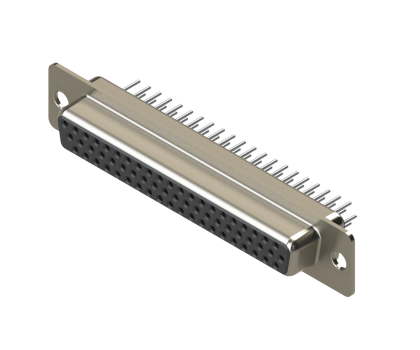

Vertical High Density PCB Mount D-Sub | Stamped Contacts
Loading Parts
Part # |
Position |
Gender |
Hardware |
Contact Plating |
drawing |
3D Model |
Order Samples |
|
|---|---|---|---|---|---|---|---|---|
|

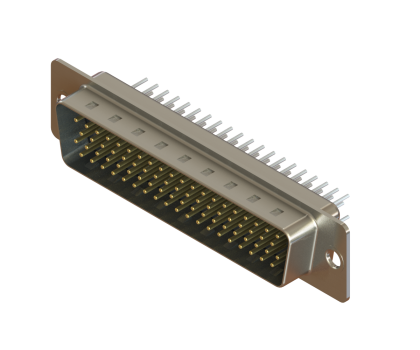

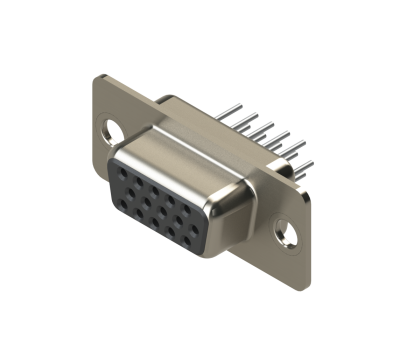

MHHDD-15FNS-A1 | 15 | Female | Through Hole | Gold Flash | |||
|

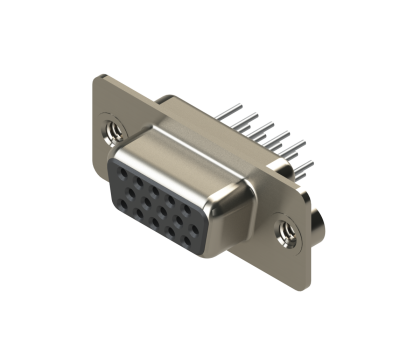

MHHDD-15FNS-C1 | 15 | Female | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

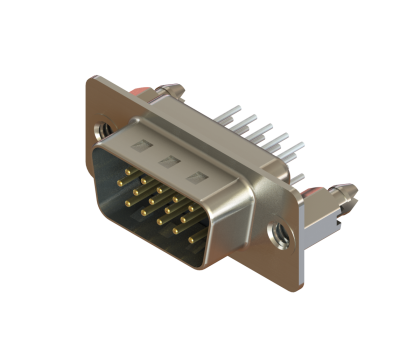

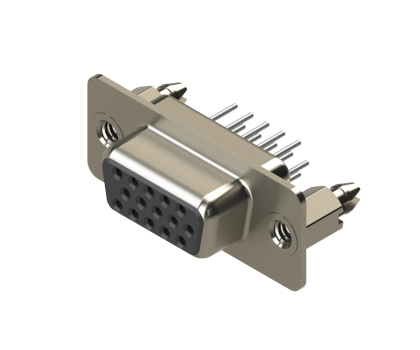

MHHDD-15FNS-E1 | 15 | Female | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

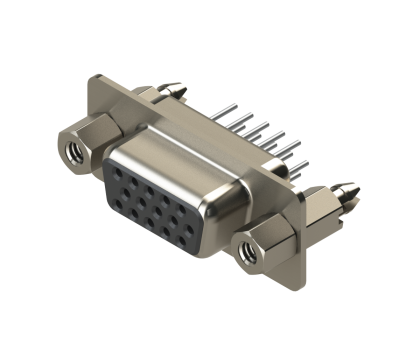

MHHDD-15FNS-H1 | 15 | Female | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|
MHHDD-15MNS-A1 | 15 | Male | Through Hole | Gold Flash | |||
|

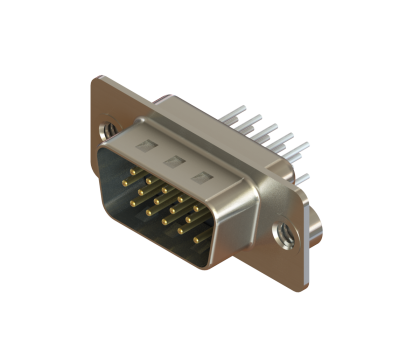

MHHDD-15MNS-C1 | 15 | Male | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|
MHHDD-15MNS-E1 | 15 | Male | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

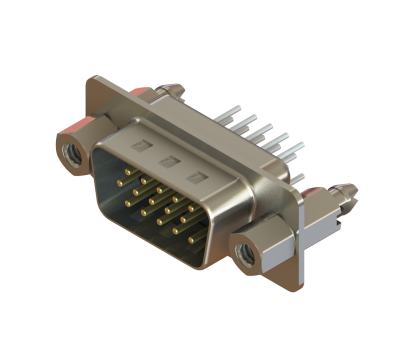

MHHDD-15MNS-H1 | 15 | Male | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|
MHHDD-26FNS-A1 | 26 | Female | Through Hole | Gold Flash | |||
|

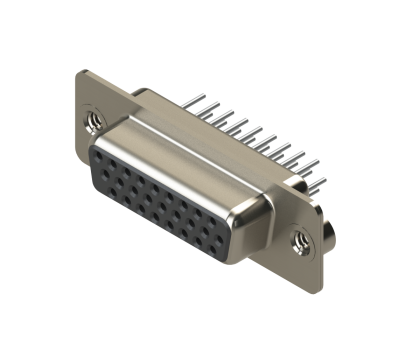

MHHDD-26FNS-C1 | 26 | Female | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

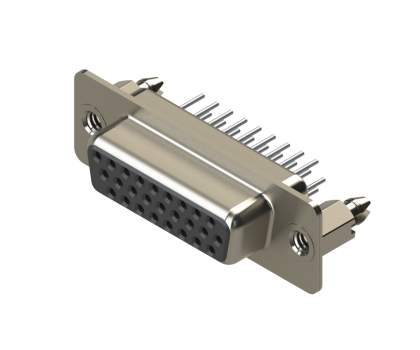

MHHDD-26FNS-E1 | 26 | Female | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

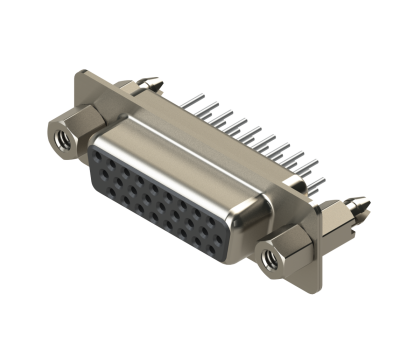

MHHDD-26FNS-H1 | 26 | Female | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|

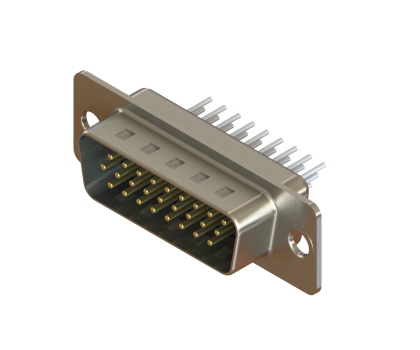

MHHDD-26MNS-A1 | 26 | Male | Through Hole | Gold Flash | |||
|
MHHDD-26MNS-C1 | 26 | Male | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

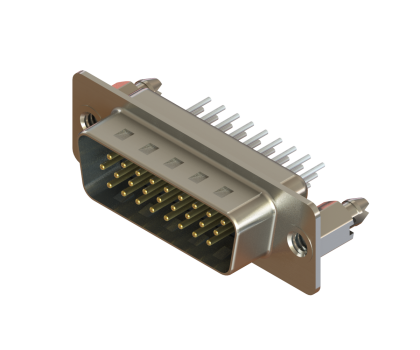

MHHDD-26MNS-E1 | 26 | Male | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

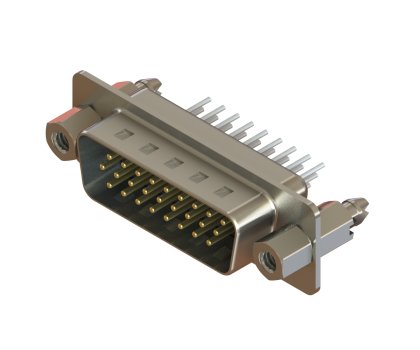

MHHDD-26MNS-H1 | 26 | Male | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|

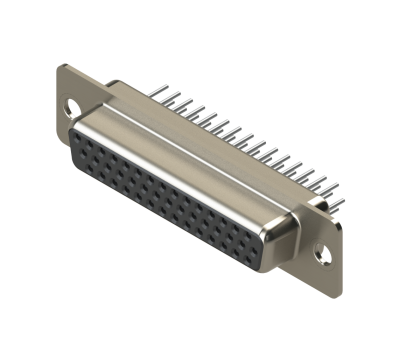

MHHDD-44FNS-A1 | 44 | Female | Through Hole | Gold Flash | |||
|

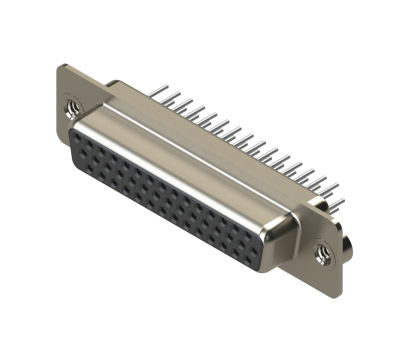

MHHDD-44FNS-C1 | 44 | Female | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

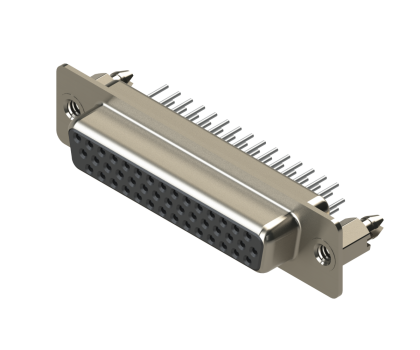

MHHDD-44FNS-E1 | 44 | Female | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

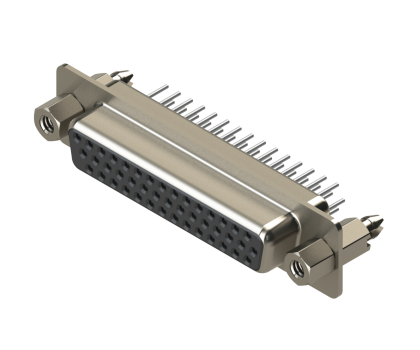

MHHDD-44FNS-H1 | 44 | Female | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|

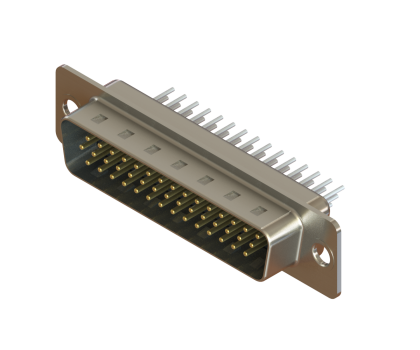

MHHDD-44MNS-A1 | 44 | Male | Through Hole | Gold Flash | |||
|

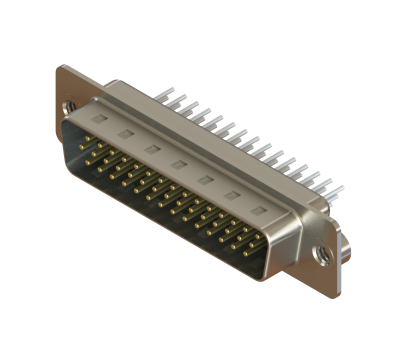

MHHDD-44MNS-C1 | 44 | Male | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

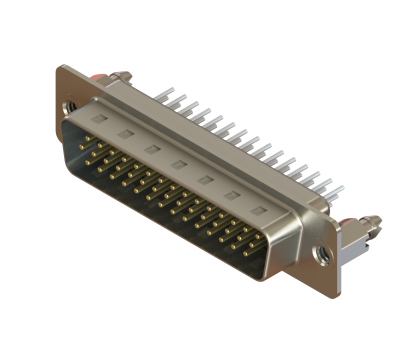

MHHDD-44MNS-E1 | 44 | Male | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|
MHHDD-44MNS-H1 | 44 | Male | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|
MHHDD-62FNS-A1 | 62 | Female | Through Hole | Gold Flash | |||
|

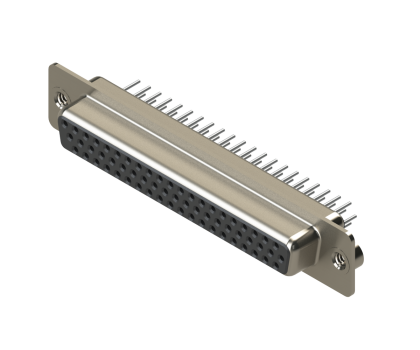

MHHDD-62FNS-C1 | 62 | Female | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

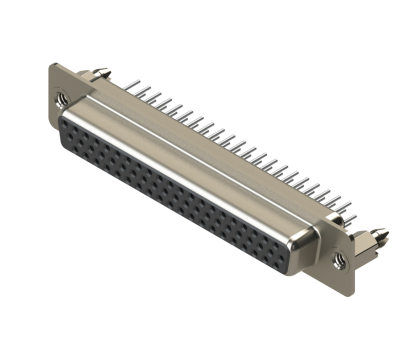

MHHDD-62FNS-E1 | 62 | Female | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|
MHHDD-62FNS-H1 | 62 | Female | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|

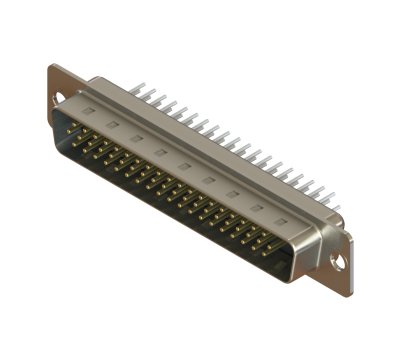

MHHDD-62MNS-A1 | 62 | Male | Through Hole | Gold Flash | |||
|

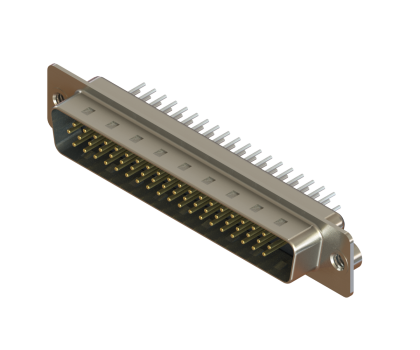

MHHDD-62MNS-C1 | 62 | Male | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

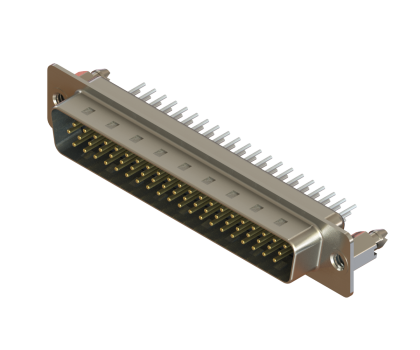

MHHDD-62MNS-E1 | 62 | Male | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|
MHHDD-62MNS-H1 | 62 | Male | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|
MHHDD-78FNS-A1 | 78 | Female | Through Hole | Gold Flash | |||
|

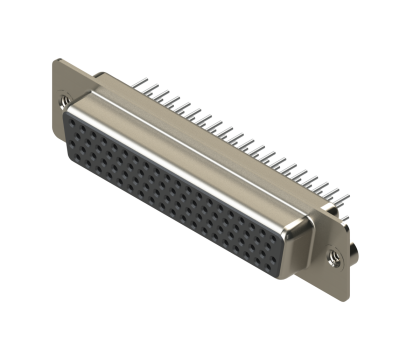

MHHDD-78FNS-C1 | 78 | Female | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

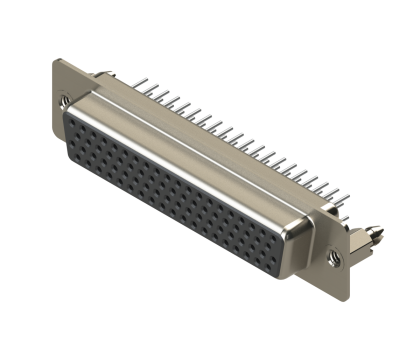

MHHDD-78FNS-E1 | 78 | Female | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

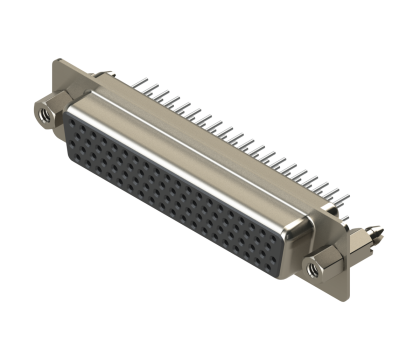

MHHDD-78FNS-H1 | 78 | Female | #4-40 Threaded Standoff with Boardlock | Gold Flash | |||
|
MHHDD-78MNS-A1 | 78 | Male | Through Hole | Gold Flash | |||
|

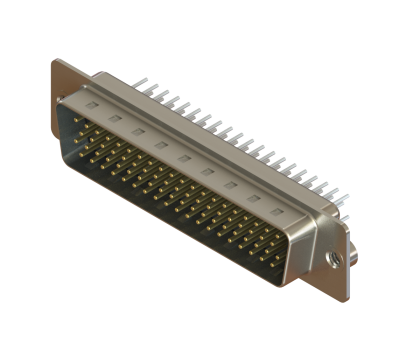

MHHDD-78MNS-C1 | 78 | Male | #4-40 Boardside Clinch Nut 2.5mm Length | Gold Flash | |||
|

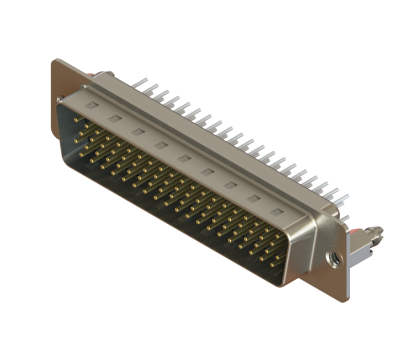

MHHDD-78MNS-E1 | 78 | Male | #4-40 Boardside Clinch Nut with Boardlock | Gold Flash | |||
|

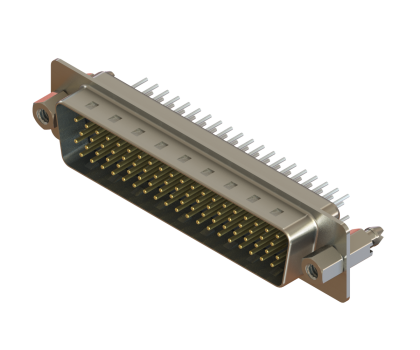

MHHDD-78MNS-H1 | 78 | Male | #4-40 Threaded Standoff with Boardlock | Gold Flash |
