Features
| - Available in standard high density D-Sub sizes 15, 26, 44, 62-way |
| - PCB mount in right angle orientation with stamped contacts |
Specifications
| Insulator Material: | Glass-filled PBT, Black |
| Shell Material: | Steel |
| Contact Material | Brass |
| Contact Plating: | Gold Flash |
| Current Rating: | 3A |
| Withstanding Voltage: | 500 V AC for 1 Minute |
| Insulation Resistance: | 1000 MΩ Minimum |
| Contact Resistance: | 30 mΩ Maximum |
| Temperature Range: | -55°C TO 105°C |
Right Angle High Density PCB Mount D-Sub | Stamped Contacts
Loading Parts
Part # |
Position |
Gender |
Hardware |
Contact Plating |
Drawing |
3D Model |
Order Samples |
|
|---|---|---|---|---|---|---|---|---|
|

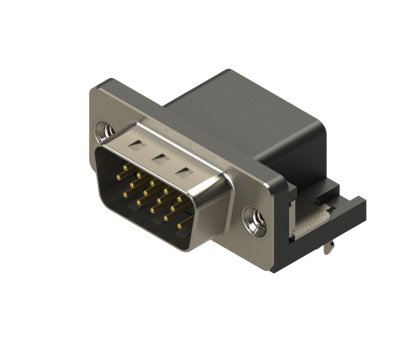

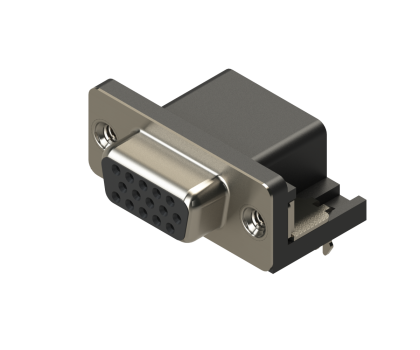

MHHDR-15FNS-A1 | 15 | Female | #4-40 Threaded Hole with 2 Prong Boardlock | Gold Flash | |||
|

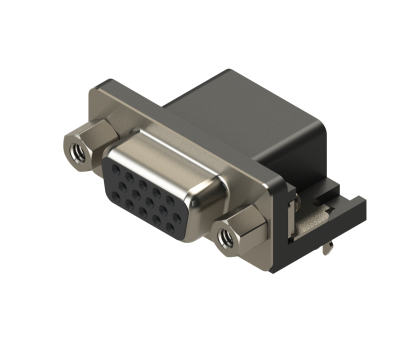

MHHDR-15FNS-B1 | 15 | Female | #4-40 Threaded Standoff with 2 Prong Boardlock | Gold Flash | |||
|
MHHDR-15FNS-C1 | 15 | Female | #4-40 Threaded Hole with L Ground Straps | Gold Flash | |||
|
MHHDR-15MNS-A1 | 15 | Male | #4-40 Threaded Hole with 2 Prong Boardlock | Gold Flash | |||
|

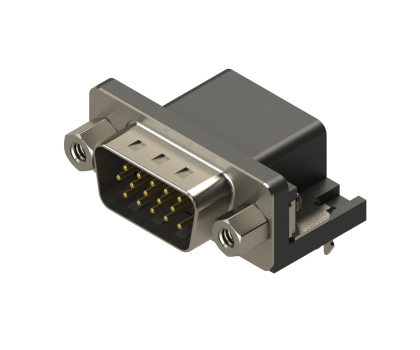

MHHDR-15MNS-B1 | 15 | Male | #4-40 Threaded Standoff with 2 Prong Boardlock | Gold Flash | |||
|

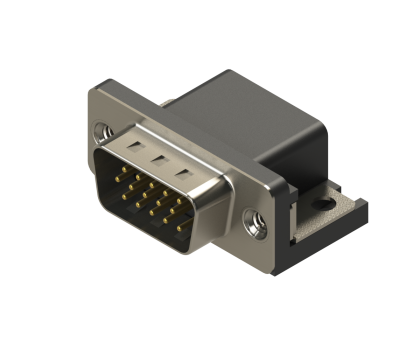

MHHDR-15MNS-C1 | 15 | Male | #4-40 Threaded Hole with L Ground Straps | Gold Flash | |||
|

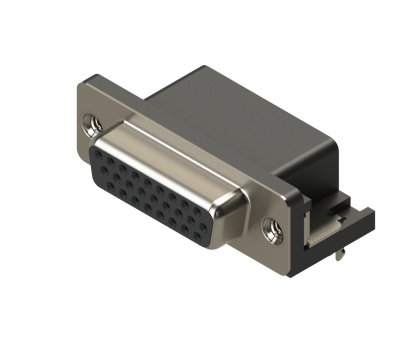

MHHDR-26FNS-A1 | 26 | Female | #4-40 Threaded Hole with 2 Prong Boardlock | Gold Flash | |||
|

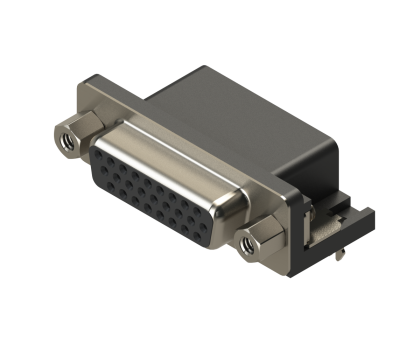

MHHDR-26FNS-B1 | 26 | Female | #4-40 Threaded Standoff with 2 Prong Boardlock | Gold Flash | |||
|

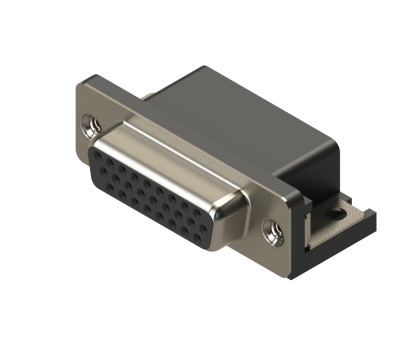

MHHDR-26FNS-C1 | 26 | Female | #4-40 Threaded Hole with L Ground Straps | Gold Flash | |||
|

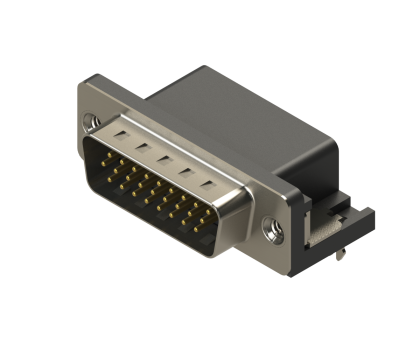

MHHDR-26MNS-A1 | 26 | Male | #4-40 Threaded Hole with 2 Prong Boardlock | Gold Flash | |||
|

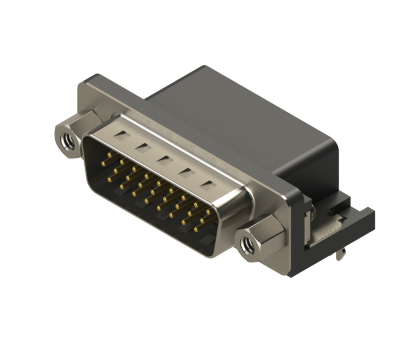

MHHDR-26MNS-B1 | 26 | Male | #4-40 Threaded Standoff with 2 Prong Boardlock | Gold Flash | |||
|

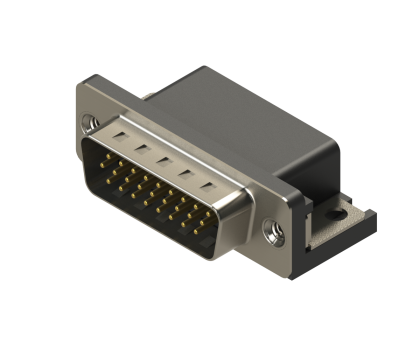

MHHDR-26MNS-C1 | 26 | Male | #4-40 Threaded Hole with L Ground Straps | Gold Flash | |||
|

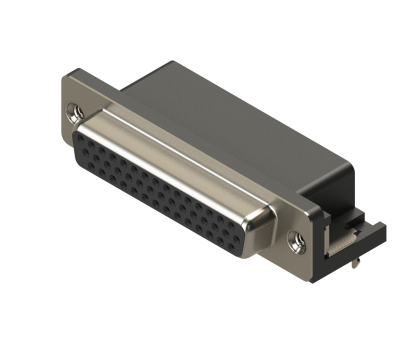

MHHDR-44FNS-A1 | 44 | Female | #4-40 Threaded Hole with 2 Prong Boardlock | Gold Flash | |||
|

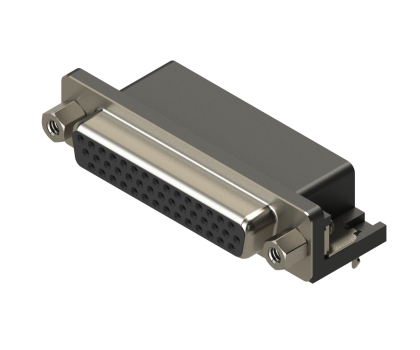

MHHDR-44FNS-B1 | 44 | Female | #4-40 Threaded Standoff with 2 Prong Boardlock | Gold Flash | |||
|

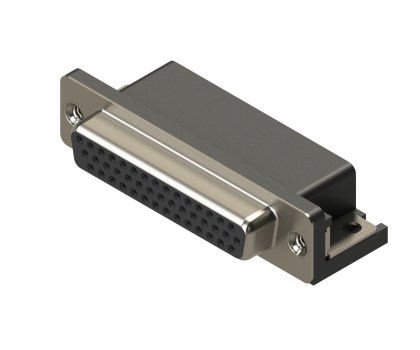

MHHDR-44FNS-C1 | 44 | Female | #4-40 Threaded Hole with L Ground Straps | Gold Flash | |||
|
MHHDR-44MNS-A1 | 44 | Male | #4-40 Threaded Hole with 2 Prong Boardlock | Gold Flash | |||
|
MHHDR-44MNS-B1 | 44 | Male | #4-40 Threaded Standoff with 2 Prong Boardlock | Gold Flash | |||
|

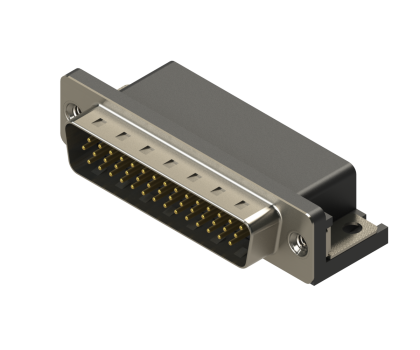

MHHDR-44MNS-C1 | 44 | Male | #4-40 Threaded Hole with L Ground Straps | Gold Flash | |||
|
MHHDR-62FNS-A1 | 62 | Female | #4-40 Threaded Hole with 2 Prong Boardlock | Gold Flash | |||
|
MHHDR-62FNS-B1 | 62 | Female | #4-40 Threaded Standoff with 2 Prong Boardlock | Gold Flash | |||
|

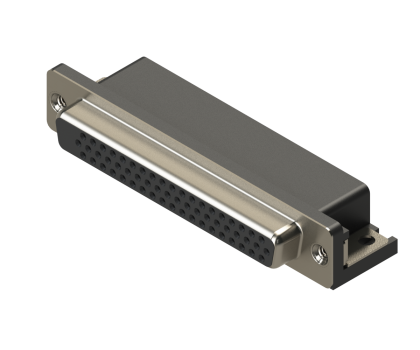

MHHDR-62FNS-C1 | 62 | Female | #4-40 Threaded Hole with L Ground Straps | Gold Flash | |||
|

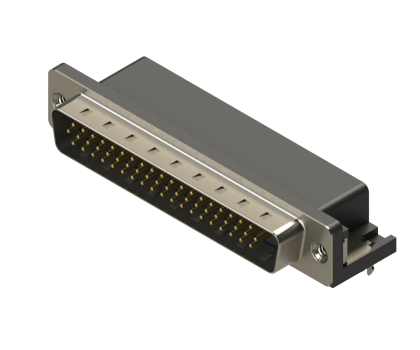

MHHDR-62MNS-A1 | 62 | Male | #4-40 Threaded Hole with 2 Prong Boardlock | Gold Flash | |||
|

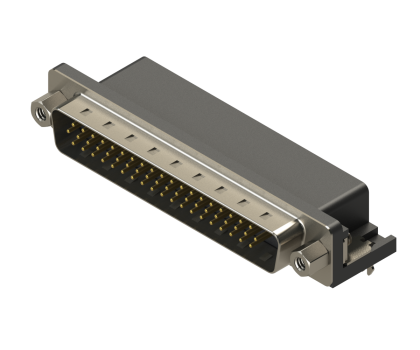

MHHDR-62MNS-B1 | 62 | Male | #4-40 Threaded Standoff with 2 Prong Boardlock | Gold Flash | |||
|

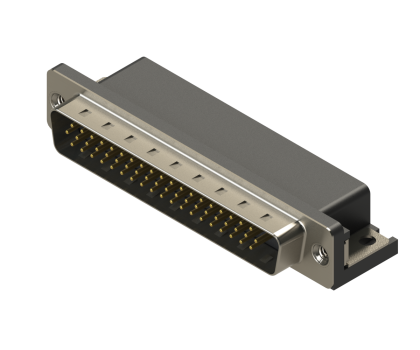

MHHDR-62MNS-C1 | 62 | Male | #4-40 Threaded Hole with L Ground Straps | Gold Flash |
