Features
| - Available in sizes 9, 15, 25 and 37-way |
| - Suitable for any common D-Sub connector |
| - Strain relief inserts ensure a secure termination |
| - Easy to reopen |
| - Company logo can be added on request |
| - Also available as an unshielded (MHD45PPK) or metal (MHD45ZK) version |
Specifications
| Housing Material: | ABS, UL-recognised |
| Housing Plating: | Nickel over Copper |
| Operating Temperature Range: | -55°C to +110°C |
| Cable Entry: | 45° Side |
| Thumbscrews: | UNC 4-40 (Standard), M2.5 or M3 (On Request) |
| Cable Outer Diameter: | Up to 13mm |

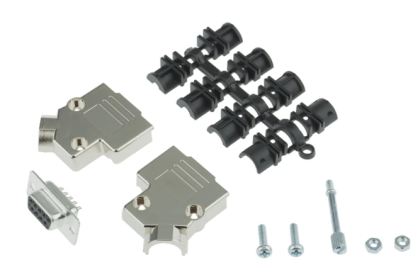

Standard D-Sub Hood | 45° Side Entry
Loading Parts
Part # |
Position |
housing material |
drawing |
|
|---|---|---|---|---|
|
MHD45PK-09-K | 9 | Zinc Plated | |
|
MHD45PK-15-K | 15 | Nickel Plated | |
|
MHD45PK-25-K | 25 | Nickel Plated | |
|
MHD45PK-37-K | 37 | Nickel Plated | |
|
MHD45PK15-DB15P-K | 9 | Nickel Plated | |
|
MHD45PK15-DB15S-K | 15 | Nickel Plated | |
|
MHD45PK25-DB25P-K | 25 | Nickel Plated | N/A |
|
MHD45PK25-DB25S-K | 25 | Nickel Plated | N/A |
|
MHD45PK9-DB9P-K | 9 | Nickel Plated | N/A |
|
MHD45PK9-DB9S-K | 9 | Nickel Plated | N/A |
