Features
| - Available in sizes 9, 15, 25 and 37-way |
| - Black enamel hood finish |
| - Suitable for any common D-Sub connector |
| - Strain relief inserts ensure a secure termination |
| - Easy to reopen |
| - Company logo can be added on request |
| - Also available as an unshielded (MHD45PPK), metalised (MHD45PK) or die cast nickel-plated (MHDT45ZK) version |
Specifications
| Housing Material: | Die Cast Zinc Alloy |
| Housing Plating: | Black Enamel over Chrome |
| Operating Temperature Range: | -40°C to +120°C |
| Cable Entry: | 45° Side Entry |
| Thumbscrews: | UNC 4-40 (Standard), M2.5 or M3 (On Request) |
| Cable Outer Diameter: | Up to 13mm |

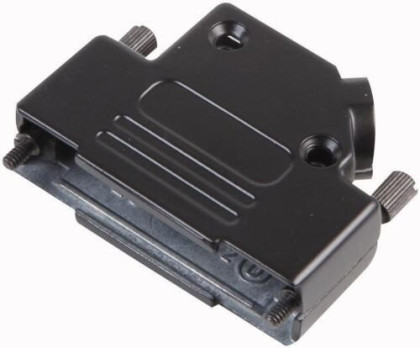

Standard D-Sub Hood | Black, 45° Side Entry
Loading Parts
Part # |
Position |
housing material |
drawing |
Order Samples |
|
|---|---|---|---|---|---|
|
MHD45ZK09-BK-K | 9 | Zinc Alloy | ||
|
MHD45ZK15-BK-K | 15 | Zinc Alloy | ||
|
MHD45ZK25-BK-K | 25 | Zinc Alloy | ||
|
MHD45ZK37-BK-K | 37 | Zinc Alloy |
