MHDBC Series

Features

- Available in sizes 9, 15, 25, 35 and 50-way
- Connector housings are supplied without contacts
- Connectors accept MHDBCTMR (plug) or MHDBCTFR (socket) contacts only, purchased separately
- Suitable for most MH d-sub hoods


Specifications

Insulator Material:Glass-filled Polyester, Black, UL94 V-0
Shell Material:Stamped Steel
Shell Plating:Nickel Plated
Contact Material (Contacts not Preloaded):Copper Alloy
Contact Plating (Contacts not Preloaded):Selective Gold over Nickel Plated
Contact Rating (Contacts not Preloaded):100 inserts min. (Stamped Contacts)



Crimped Contact D-Sub Housing


OR

Loading Parts


Part #

Position

material

drawing

MHDBC-IET
MHDBC-IET - ABS, Brass
MHDBC09-SP
MHDBC09-SP 9 Nickel Plated
MHDBC09-SS
MHDBC09-SS 9 Nickel Plated
MHDBC09SP-NW
MHDBC9SP-NW 9 Nickel Plated

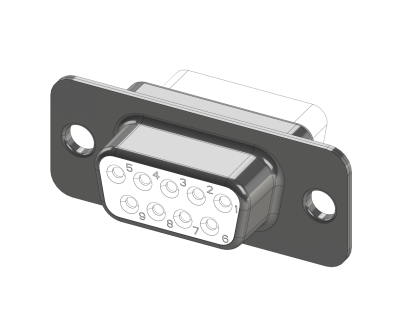

MHDBC09SS-NW
MHDBC9SS-NW 9 Nickel Plated
MHDBC15-SP
MHDBC15-SP 15 Nickel Plated
MHDBC15-SS
MHDBC15-SS 15 Nickel Plated
MHDBC15SP-NW
MHDBC15SP-NW 15 Nickel Plated
MHDBC15SS-NW
MHDBC15SS-NW 15 Nickel Plated
MHDBC25-SP
MHDBC25-SP 25 Nickel Plated
MHDBC25-SS
MHDBC25-SS 25 Nickel Plated
MHDBC25SP-NW
MHDBC25SP-NW 25 Nickel Plated
MHDBC25SS-NW
MHDBC25SS-NW 25 Nickel Plated
MHDBC37-SP
MHDBC37-SP 37 Nickel Plated
MHDBC37-SS
MHDBC37-SS 37 Nickel Plated
MHDBC37SP-NW
MHDBC37SP-NW 37 Nickel Plated
MHDBC37SS-NW
MHDBC37SS-NW 37 Nickel Plated
MHDBC50-SP
MHDBC50-SP 50 Nickel Plated
MHDBC50-SS
MHDBC50-SS 50 Nickel Plated
MHDBCTFR
MHDBCTFR - Brass, Gold Flash
MHDBCTMR
MHDBCTMR - Brass, Gold Flash
MHDRB-MC
MHDRB-MC - -
