Features
| - MHULTI hood, with interchangeable cable clamping accessories |
| - MHDM35 has a compression insert and clamp |
| - Available in sizes 9, 15, 25 and 37-way |
| - Suitable for any MH d-sub connector |
| - 360° EMI shielding |
| - Supports all types of cable |
| - Easy to reopen |
| - Also available as a cable crimping ferrule (MHC35 series) version |
| - Also available as a cone and clamp (MHEE35 series) version |
Specifications
| Housing Material: | Die Cast Zinc Alloy |
| Housing Plating: | Nickel Plated |
| Operating Temperature Range: | -40°C to +120°C |
| Cable Entry: | 35° Side Entry |
| Thumbscrews: | UNC 4-40 (Standard), M2.5 and M3 (On Request) |
| Cable Outer Diameter: | Up to 13 mm |

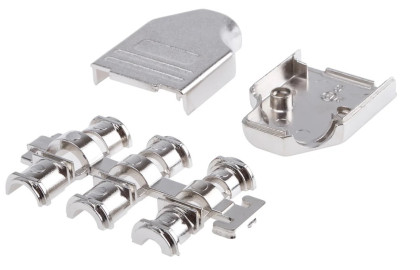

MHULTI D-Sub Hood | Compression Insert, 35° Side Entry
Loading Parts
Part # |
Position |
housing material |
Drawing |
|
|---|---|---|---|---|
|
MHDM35-09-K | 9 | Die Cast Zinc Alloy | |
|
MHDM35-15-K | 15 | Die Cast Zinc Alloy | |
|
MHDM35-25-K | 25 | Die Cast Zinc Alloy | |
|
MHDM35-37-K | 37 | Die Cast Zinc Alloy |
