Features
| - Available with 4, 6 or 8 positions and 4, 6 or 8 contacts |
| - Compatible with standard crimping tools |
| - Compatible with all FCC specifications |
| - Flat cable plug available on request |
| - Contacts are gold over nickel plated as standard, other platings available on request |
Specifications
| Insulator Material: | UL-rated Polycarbonate |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold (50μ") over Nickel Plated |
RJ Modular Plug
Loading Parts
Part # |
Position |
material |
drawing |
|
|---|---|---|---|---|
|
MHRJ11-6P4CR | 6 Position 4 Contacts | Polycarbonate Insulator | |
|
MHRJ12-6P6CR | 6 Position 6 Contacts | Polycarbonate Insulator | |
|
MHRJ22-4P4CF | 4 Position 4 Contacts | Polycarbonate Insulator | |
|
MHRJ22-4P4CR | 4 Position 4 Contacts | Polycarbonate Insulator | |
|
MHRJ45-8P8CR | 8 Position 8 Contacts | Polycarbonate Insulator | |
|
MHRJ45SRB-BK | - | PVC, Black | |
|
MHRJ45SRB-DG | - | PVC, Dark Grey | |
|
MHRJ45SRB-G | - | PVC, Green | |
|
MHRJ45SRB-LG | - | PVC, Light Grey | |
|
MHRJ45SRB-O | - | PVC, Orange | |
|
MHRJ45SRB-P | - | PVC, Purple | |
|
MHRJ45SRB-PK | - | PVC, Pink | |
|
MHRJ45SRB-R | - | PVC, Red | |
|
MHRJ45SRB-RET-B | - | PP, Blue | |
|
MHRJ45SRB-RET-BK | - | PP, Black | |
|
MHRJ45SRB-RET-DG | - | PP, Dark Grey | |
|
MHRJ45SRB-RET-G | - | PP, Green | |
|
MHRJ45SRB-RET-LG | - | PP, Light Grey | |
|
MHRJ45SRB-RET-O | - | PVC, Orange | |
|
MHRJ45SRB-RET-P | - | PP, Purple | |
|
MHRJ45SRB-RET-PK | - | PP, Pink | |
|
MHRJ45SRB-RET-R | - | PP, Red | |
|
MHRJ45SRB-RET-W | - | PP, White | |
|
MHRJ45SRB-RET-Y | - | PP, White | |
|
MHRJ45SRB-W | - | PVC, White | |
|
MHRJ45SRB-Y | - | PVC, Yellow | |
|

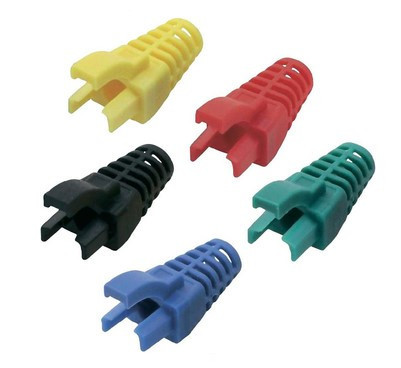

MHRJ45SRI-B | - | ABS Insert PVC Sleeve, Blue | |
|
MHRJ45SRI-BK | - | ABS Insert PVC Sleeve, Black | |
|
MHRJ45SRI-G | - | ABS Insert PVC Sleeve, Green | |
|
MHRJ45SRI-LG | - | ABS Insert PVC Sleeve, Light Grey | |
|
MHRJ45SRI-R | - | ABS Insert PVC Sleeve, Red | |
|
MHRJ45SRI-Y | - | ABS Insert PVC Sleeve, Yellow | |
|
MHRJ48-10P10CR | 10 Position 10 Contacts | Polycarbonate Insulator |
