Features
| - Available with 4, 6 or 8 positions and 4, 6 or 8 contacts |
| - Available with or without shielding |
| - Accepts a standard RJ plug |
| - Compatible with industry standard PCB layouts |
Specifications
| Insulator Material: | Thermoplastic, UL94 V-0 |
| Shielding Shell Material: | Brass |
| Shielding Shell Plating: | Nickel Plated |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Gold over Nickel Plated (Mating Area) |
| Tin over Nickel (Termination Area) |

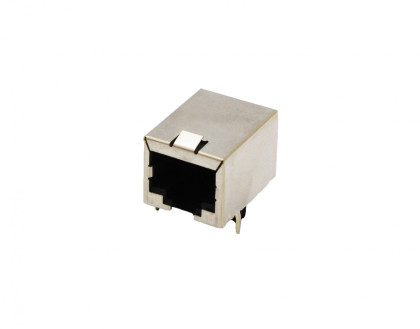

RJ Modular Jack
Loading Parts
Part # |
drawing |
Order Samples |
|
|---|---|---|---|
|
MHRJJ-44NF-RA | ||
|
MHRJJ-44NF-V | ||
|
MHRJJ-64NF-RA | ||
|
MHRJJ-64NF-V | ||
|
MHRJJ-66NF-RA | ||
|
MHRJJ-66NF-RA-S | ||
|
MHRJJ-66NF-V | ||
|
MHRJJ-66NF-V-S | ||
|
MHRJJ-88NF-RA | ||
|
MHRJJ-88NF-RA-S | ||
|
MHRJJ-88NF-V | ||
|
MHRJJ-88NF-VS |
