Features
- Available in sizes 9-15-25-37-50 way
- Suitable for any common D-Sub connector.
- Quick-snap locking system.
- Standard colour black, other colours available on request
- Company logo can be added
Specifications
- Polyamid, UL-recognised
- Operating temperature: -55 to 110+
- Cable Entry: Top
- Thumbscrews: UNC 4-40 (Standard) M2.5 or M3 on request.

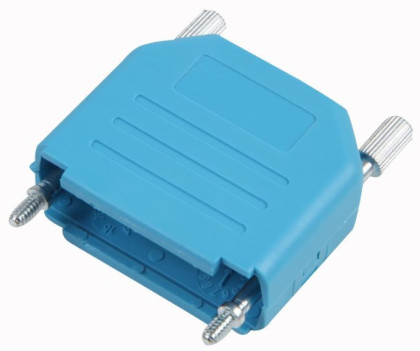

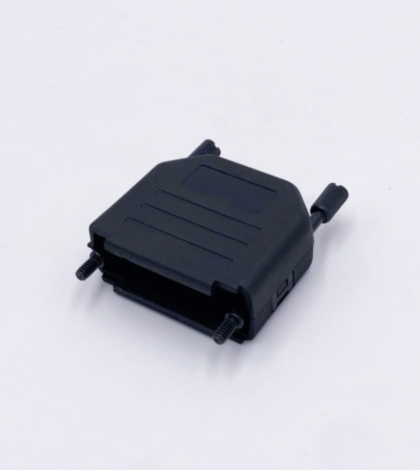

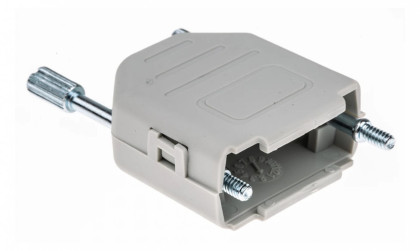

N.B Image is a representative of the series
Quick Snap D-Sub Hood, 180⁰ Entry
Loading Parts
Part # |
Position |
Position |
material |
video |
drawing |
|
|---|---|---|---|---|---|---|
|
MHDPPK-09-K | 9 | 9 | UL-recognised Plastic Material | ||
|
MHDPPK-15-K | 15 | 15 | UL-recognised Plastic Material | ||
|
MHDPPK-25-K | 25 | 25 | UL-recognised Plastic Material | ||
|
MHDPPK-37-K | 37 | 37 | UL-recognised Plastic Material | ||
|
MHDPPK-50-K | 50 | 50 | UL-recognised Plastic Material | ||
|
MHDPPK09-B-K | 9 | 9 | UL-recognised Plastic Material | ||
|
MHDPPK09-DEC-K | 9 | 9 | UL-recognised Plastic Material | ||
|
MHDPPK09-G-K | 9 | 9 | UL-recognised Plastic Material | ||
|
MHDPPK09-LG-K | 9 | 9 | UL-recognised Plastic Material | ||
|
MHDPPK09-R-K | 9 | 9 | UL-recognised Plastic Material | ||
|
MHDPPK09-W-K | 9 | 9 | UL-recognised Plastic Material | ||
|
MHDPPK09-Y-K | 9 | 9 | UL-recognised Plastic Material | ||
|
MHDPPK15-B-K | 15 | 15 | UL-recognised Plastic Material | ||
|
MHDPPK15-DB15P-K | 15 | 15 | UL-recognised Plastic Material Hood | N/A | |
|
MHDPPK15-DB15S-K | 15 | 15 | UL-recognised Plastic Material Hood | N/A | |
|
MHDPPK15-DEC-K | 15 | 15 | UL-recognised Plastic Material | ||
|
MHDPPK15-G-K | 15 | 15 | UL-recognised Plastic Material | ||
|
MHDPPK15-LG-K | 15 | 15 | UL-recognised Plastic Material | ||
|
MHDPPK15-R-K | 15 | 15 | UL-recognised Plastic Material | ||
|
MHDPPK15-W-K | 15 | 15 | UL-recognised Plastic Material | ||
|
MHDPPK15-Y-K | 15 | 15 | UL-recognised Plastic Material | ||
|
MHDPPK25-B-K | 25 | 25 | UL-recognised Plastic Material | ||
|
MHDPPK25-DB25P-K | 25 | 25 | UL-recognised Plastic Material Hood | N/A | |
|
MHDPPK25-DB25S-K | 25 | 25 | UL-recognised Plastic Material Hood | N/A | |
|
MHDPPK25-DEC-K | 25 | 25 | UL-recognised Plastic Material | ||
|
MHDPPK25-G-K | 25 | 25 | UL-recognised Plastic Material | ||
|
MHDPPK25-LG-K | 25 | 25 | UL-recognised Plastic Material | ||
|
MHDPPK25-R-K | 25 | 25 | UL-recognised Plastic Material | ||
|
MHDPPK25-W-K | 25 | 25 | UL-recognised Plastic Material | ||
|
MHDPPK25-Y-K | 25 | 25 | UL-recognised Plastic Material | ||
|
MHDPPK37-B-K | 37 | 37 | UL-recognised Plastic Material | ||
|
MHDPPK37-DEC-K | 37 | 37 | UL-recognised Plastic Material | ||
|
MHDPPK37-G-K | 37 | 37 | UL-recognised Plastic Material | ||
|
MHDPPK37-LG-K | 37 | 37 | UL-recognised Plastic Material | ||
|
MHDPPK37-R-K | 37 | 37 | UL-recognised Plastic Material | ||
|
MHDPPK37-W-K | 37 | 37 | UL-recognised Plastic Material | ||
|
MHDPPK37-Y-K | 37 | 37 | UL-recognised Plastic Material | ||
|
MHDPPK50-B-K | 50 | 50 | UL-recognised Plastic Material | ||
|
MHDPPK50-DEC-K | 50 | 50 | UL-recognised Plastic Material | ||
|
MHDPPK50-G-K | 50 | 50 | UL-recognised Plastic Material | ||
|
MHDPPK50-LG-K | 50 | 50 | UL-recognised Plastic Material | ||
|
MHDPPK50-R-K | 50 | 50 | UL-recognised Plastic Material | ||
|
MHDPPK50-W-K | 50 | 50 | UL-recognised Plastic Material | ||
|
MHDPPK50-Y-K | 50 | 50 | UL-recognised Plastic Material | ||
|
MHDPPK9-DB9P-K | 9 | 9 | UL-recognised Plastic Material Hood | N/A | |
|
MHDPPK9-DB9S-K | 9 | 9 | UL-recognised Plastic Material Hood | N/A |
