Features
| - Available in sizes 9, 15, 25 and 37-way |
| - Suitable for any common d-sub connector |
| - Strain relief inserts ensure a secure termination |
| - Re-openable |
| - Also available as a metalised (MHDTPK series) or metal (MHTZK series) version |
Specifications
| Housing Material: | ABS, Black, UL94 HB |
| Operating Temperature Range: | -55°C to +110°C |
| Cable Entry: | Top Entry |
| Thumbscrew: | UNC 4-40 (Standard), M2.5 or M3 (On Request) |
| Cable Outer Diameter | Up to 13mm |
Standard D-Sub Hood | Top Entry
Loading Parts
Part # |
Position |
housing material |
drawing |
Order Samples |
|
|---|---|---|---|---|---|
|
MHDTPPK-09-K | 9 | UL-recognised Plastic Material | ||
|
MHDTPPK-15-K | 15 | UL-recognised Plastic Material | ||
|
MHDTPPK-25-K | 25 | UL-recognised Plastic Material | ||
|
MHDTPPK-37-K | 37 | UL-recognised Plastic Material | ||
|

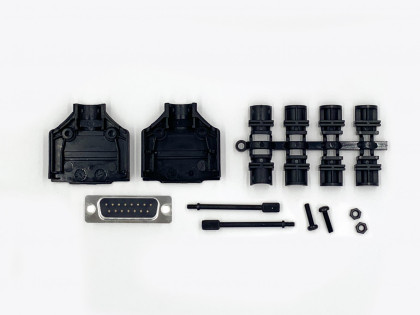

MHDTPPK15-DB15P-K | 15 | UL-recognised Plastic Material Hood | ||
|
MHDTPPK15-DB15S-K | 15 | UL-recognised Plastic Material Hood | ||
|
MHDTPPK25-DB25P-K | 25 | UL-recognised Plastic Material Hood | N/A | |
|
MHDTPPK25-DB25S-K | 25 | UL-recognised Plastic Material Hood | N/A | |
|
MHDTPPK9-DB9P-K | 9 | UL-recognised Plastic Material Hood | N/A | |
|
MHDTPPK9-DB9S-K | 9 | UL-recognised Plastic Material Hood | N/A |
