Features
| - Available in sizes 9, 15, 25, 37 and 50-way |
| - Has a rapid assembly ('RA') two-piece compression insert |
| - Suitable for any common d-sub connector |
| - Easy to reopen |
| - Also available with a two-piece compression insert and compression clip (MHDTZK-RA series) |
Specifications
| Housing Material: | Die Cast Zinc Alloy |
| Housing Plating: | Nickel Plated |
| Operating Temperature Range: | -40°C to +120°C |
| Cable Entry: | Top Entry |
| Thumbscrew: | UNC 4-40 (Standard), M2.5 or M3 (On Request) |
| Cable Outer Diameter | Up to 13mm (9, 15, 25 and 37-way) |
| Up to 17mm (50-way) |

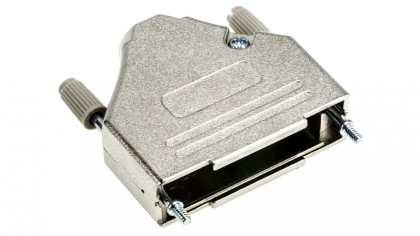

Standard D-Sub Hood | Rapid Assembly, Top Entry
Loading Parts
Part # |
Position |
housing material |
drawing |
Order Samples |
|
|---|---|---|---|---|---|
|
MHDTZK09-RA-K | 9 | Die Cast Zinc | ||
|
MHDTZK15-RA-HI-K | 15 | N/A | ||
|
|
MHDTZK15-RA-K | 15 | Die Cast Zinc | ||
|
MHDTZK15-RA-PC-K | 15 | N/A | ||
|
MHDTZK25-RA-HI-K | 25 | N/A | ||
|
|
MHDTZK25-RA-K | 25 | Die Cast Zinc | ||
|
MHDTZK25-RA-PC-K | 25 | N/A | ||
|
MHDTZK37-RA-HI-K | 37 | N/A | ||
|
|
MHDTZK37-RA-K | 37 | Die Cast Zinc | ||
|
MHDTZK37-RA-PC-K | 37 | N/A | ||
|
|
MHDTZK50-RA-HI-K | 50 | N/A | ||
|
|
MHDTZK50-RA-K | 50 | Die Cast Zinc | ||
|
MHDTZK9-RA-HI-K | 9 | N/A | ||
|
MHDTZK9-RA-PC-K | 9 | N/A |
