Features
| - Available in sizes 9, 15, 25 and 37-way |
| - Has a two-piece compression insert with a compression spring |
| - Suitable for any common d-sub connector |
| - Easy to reopen |
| - Also available with a rapid assembly ('RA') two-piece compression insert (MHDTZK-RA series) |
Specifications
| Housing Material: | Die Cast Zinc Alloy, Black |
| Housing Plating: | Nickel Plated |
| Operating Temperature Range: | -40°C to +120°C |
| Cable Entry: | Top Entry |
| Thumbscrew: | UNC 4-40 (Standard), M2.5 or M3 (On Request) |
| Cable Outer Diameter | Up to 13mm |

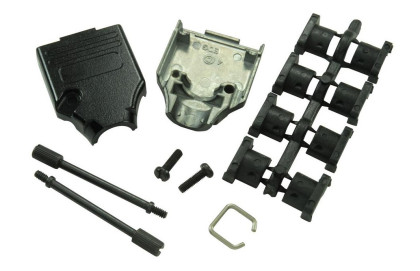

Standard D-Sub Hood | Black, Top Entry
Loading Parts
Part # |
Position |
material |
drawing |
Order Samples |
|
|---|---|---|---|---|---|
|
MHDTZK09-BK-K | 9 | Die Cast Zinc | ||
|
MHDTZK15-BK-K | 15 | Die Cast Zinc | ||
|
MHDTZK25-BK-K | 25 | Die Cast Zinc | ||
|
MHDTZK37-BK-K | 37 | Die Cast Zinc |
