Features
| PLUGS |
| - Compatible with standard crimping tools |
| - Compatible with all FCC specifications |
| - Passthrough plugs available on request |
| - Contacts are gold over nickel plated as standard, other platings available on request |
| JACKS |
| - Available with or without shielding |
| - Accept a standard RJ plug |
| - Compatible with industry standard PCB layouts |
Specifications
| PLUGS | |
| Insulator Material: | UL-rated Polycarbonate |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold (50μ") over Nickel Plated |
| Boot Material: | PVC (If Applicable) |
| Shielding Material: | Nickel Plated Brass (If Applicable) |
| Mating Cycles: | 2000 Min. |
| JACKS | |
| Insulator Material: | Thermoplastic Polyester, UL 94V-0, Black |
| Shielding Shell Material: | Nickel Plated Brass |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Gold over Nickel Plated (Mating Area) |
| Mating Cycles: | 750 Min. |

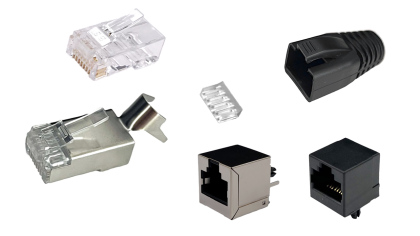

RJ45 Cat6/6A Plug and Jack
Loading Parts
Part # |
Type |
Category |
Mounting Style |
Shielding |
Includes Boot |
Wire Insulation OD |
Cable Jacket OD |
Drawing |
Test Attribute |
|
|---|---|---|---|---|---|---|---|---|---|---|
|

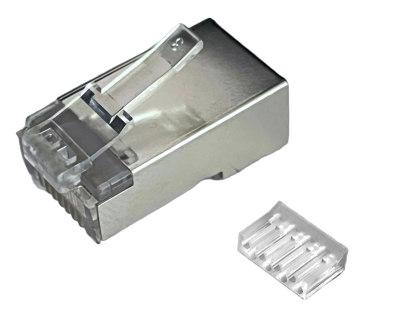

MHRJC6AR211N | Plug | Cat6A | - | Shielded | No | 1.0 - 1.1 mm | 4.5 - 6.3 mm | N/A | |
|

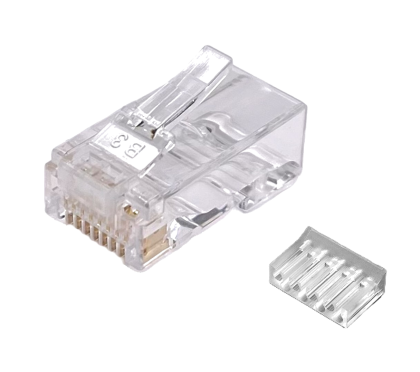

MHRJC6AR21NN | Plug | Cat6A | - | Unshielded | No | 1.0 - 1.1 mm | 4.5 - 6.3 mm | N/A | |
|

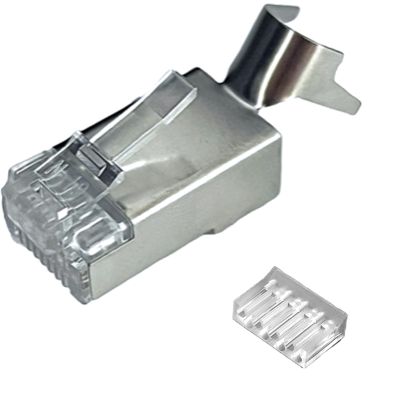

MHRJC6AR222N | Plug | Cat6A | - | Shielded | No | 1.0 - 1.1 mm | 5.9 - 8.5 mm | N/A | |
|

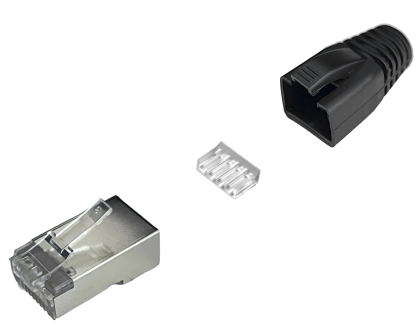

MHRJC6AR2X1X | Plug | Cat6A | - | Shielded | Yes | 1.0 - 1.1 mm | Boot Dependent | N/A | |
|

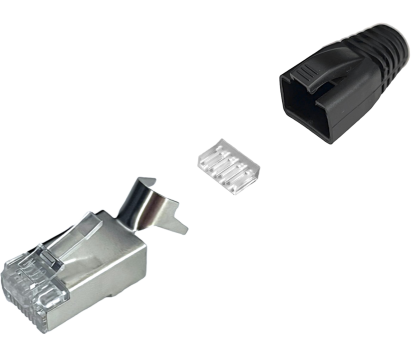

MHRJC6AR2X2X | Plug | Cat6A | - | Shielded | Yes | 1.0 - 1.1 mm | Boot Dependent | N/A | |
|

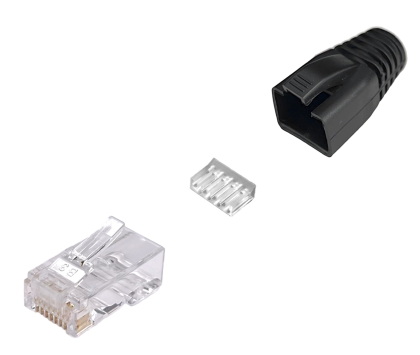

MHRJC6AR2XNX | Plug | Cat6A | - | Unshielded | Yes | 1.0 - 1.1 mm | Boot Dependent | N/A | |
|

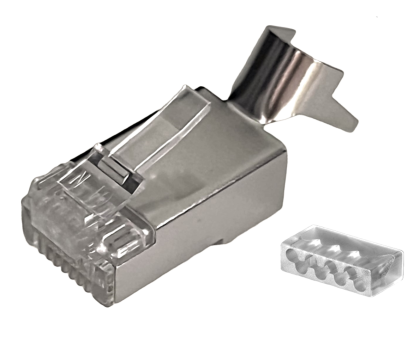

MHRJC6AR322N | Plug | Cat6A | - | Shielded | No | 1.10 - 1.25 mm | 5.9 - 8.5 mm | N/A | |
|

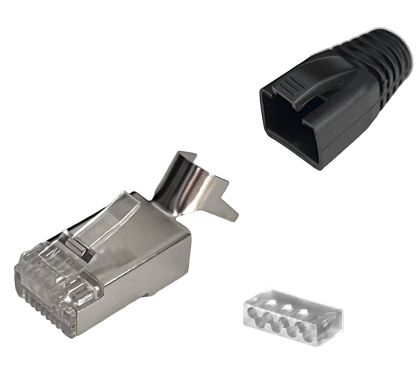

MHRJC6AR3X2X | Plug | Cat6A | - | Shielded | Yes | 1.10 - 1.25 mm | Boot Dependent | N/A | |
|

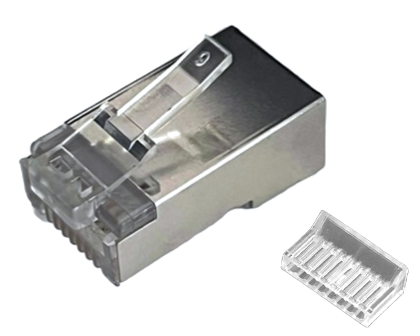

MHRJC6R111N | Plug | Cat6 | - | Shielded | No | 0.9 - 1.0 mm | 4.5 - 6.3 mm | N/A | |
|

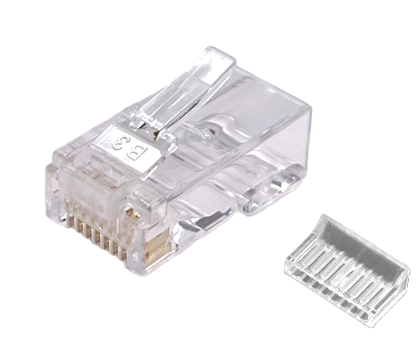

MHRJC6R11NN | Plug | Cat6 | - | Unshielded | No | 0.9 - 1.0 mm | 4.5 - 6.3 mm | N/A | |
|

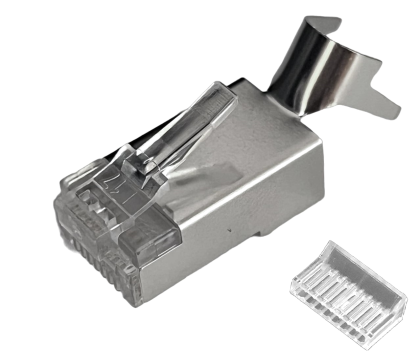

MHRJC6R122N | Plug | Cat6 | - | Shielded | No | 0.9 - 1.0 mm | 5.9 - 8.5 mm | N/A | |
|

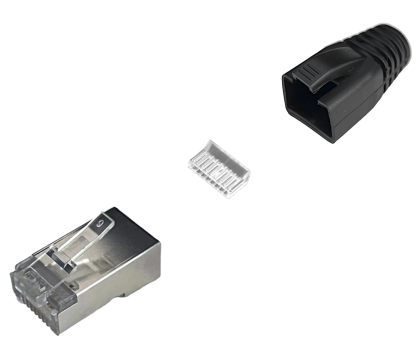

MHRJC6R1X1X | Plug | Cat6 | - | Shielded | Yes | 0.9 - 1.0 mm | Boot Dependent | N/A | |
|

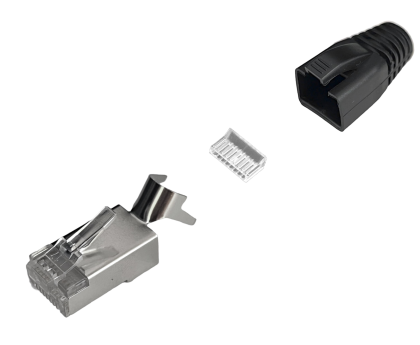

MHRJC6R1X2X | Plug | Cat6 | - | Shielded | Yes | 0.9 - 1.0 mm | Boot Dependent | N/A | |
|

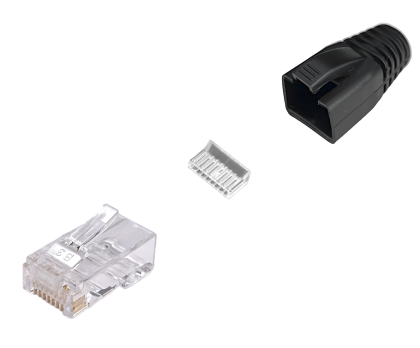

MHRJC6R1XNX | Plug | Cat6 | - | Unshielded | Yes | 0.9 - 1.0 mm | Boot Dependent | N/A | |
|

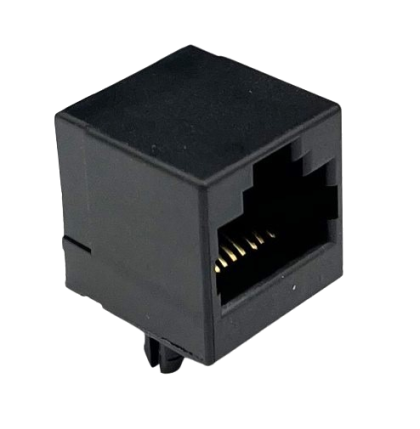

MHRJJC6NFRNX | Jack | Cat6 | Right Angle | Unshielded | - | - | - | N/A | |
|

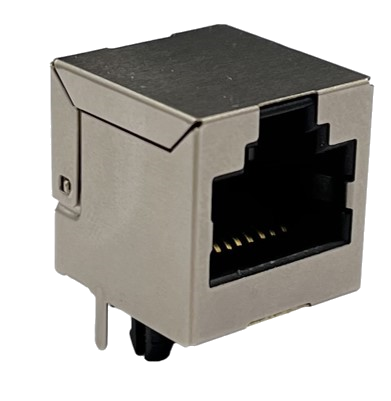

MHRJJC6NFRSX | Jack | Cat6 | Right Angle | Shielded | - | - | - | N/A | |
|

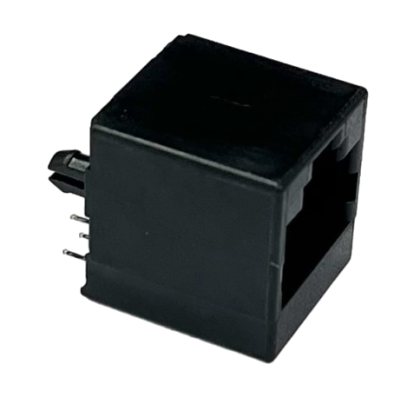

MHRJJC6NFVNX | Jack | Cat6 | Vertical | Unshielded | - | - | - | N/A | |
|

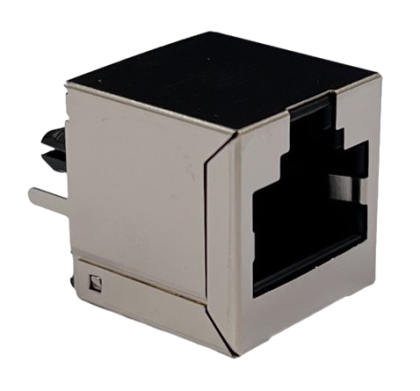

MHRJJC6NFVSX | Jack | Cat6 | Vertical | Shielded | - | - | - | N/A |
