Features
| - Available in sizes 9, 15, 25 and 37-way |
| - Suitable for a flat ribbon cable |
| - One-piece IDC clamp pierces the insulator for termination |
| - Contacts are stamped and formed |
| - Suitable for most MH d-sub hoods |
Specifications
| Insulator Material: | Glass-filled Polyester, Black, UL94 V-0 |
| Shell Material: | Stamped Steel |
| Shell Plating: | Tin Plated |
| Contact Material: | Copper Alloy |
| Contact Plating: | Selective Gold over Nickel Plated |
| Contact Cycles: | 50 inserts min. (Stamped Contacts) |

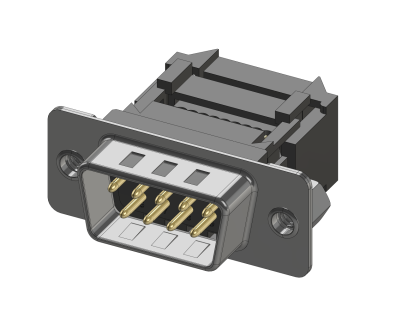

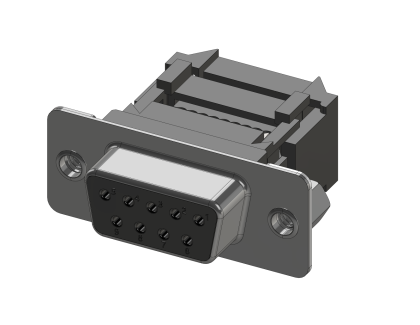

Renders shown are representative only, please contact us for specific details on this range.
Premium IDC D-Sub | Stamped Contacts
Loading Parts
Part # |
Position |
TYPE |
Drawing |
|
|---|---|---|---|---|
|
MH10175 | 9 | Strain Relief Bar | |
|
MH10176 | 15 | Strain Relief Bar | |
|
MH10177 | 25 | Strain Relief Bar | |
|
MH10178 | 37 | Strain Relief Bar | |
|
MH10551 | 9 | Plug | 3.1mm Thru Hole | |
|
MH10552 | 15 | Plug | 3.1mm Thru Hole | |
|
MH10553 | 25 | Plug | 3.1mm Thru Hole | |
|
MH10554 | 37 | Plug | 3.1mm Thru Hole | |
|
MH10567 | 9 | Plug | Clinch Nut | |
|
MH10568 | 15 | Plug | Clinch Nut | |
|
MH10569 | 25 | Plug | Clinch Nut | |
|
MH10570 | 37 | Plug | Clinch Nut | |
|
MH10575 | 9 | Socket | 3.1mm Thru-Hole | |
|
MH10576 | 15 | Socket | 3.1mm Thru-Hole | |
|
MH10577 | 25 | Socket | 3.1mm Thru-Hole | |
|
MH10578 | 37 | Socket | 3.1mm Thru-Hole | |
|
MH10591 | 9 | Socket | Clinch Nut | |
|
MH10592 | 15 | Socket | Clinch Nut | |
|
MH10593 | 25 | Socket | Clinch Nut | |
|
MH10594 | 37 | Socket | Clinch Nut |
